F100FET (2017)
INTAKE 3

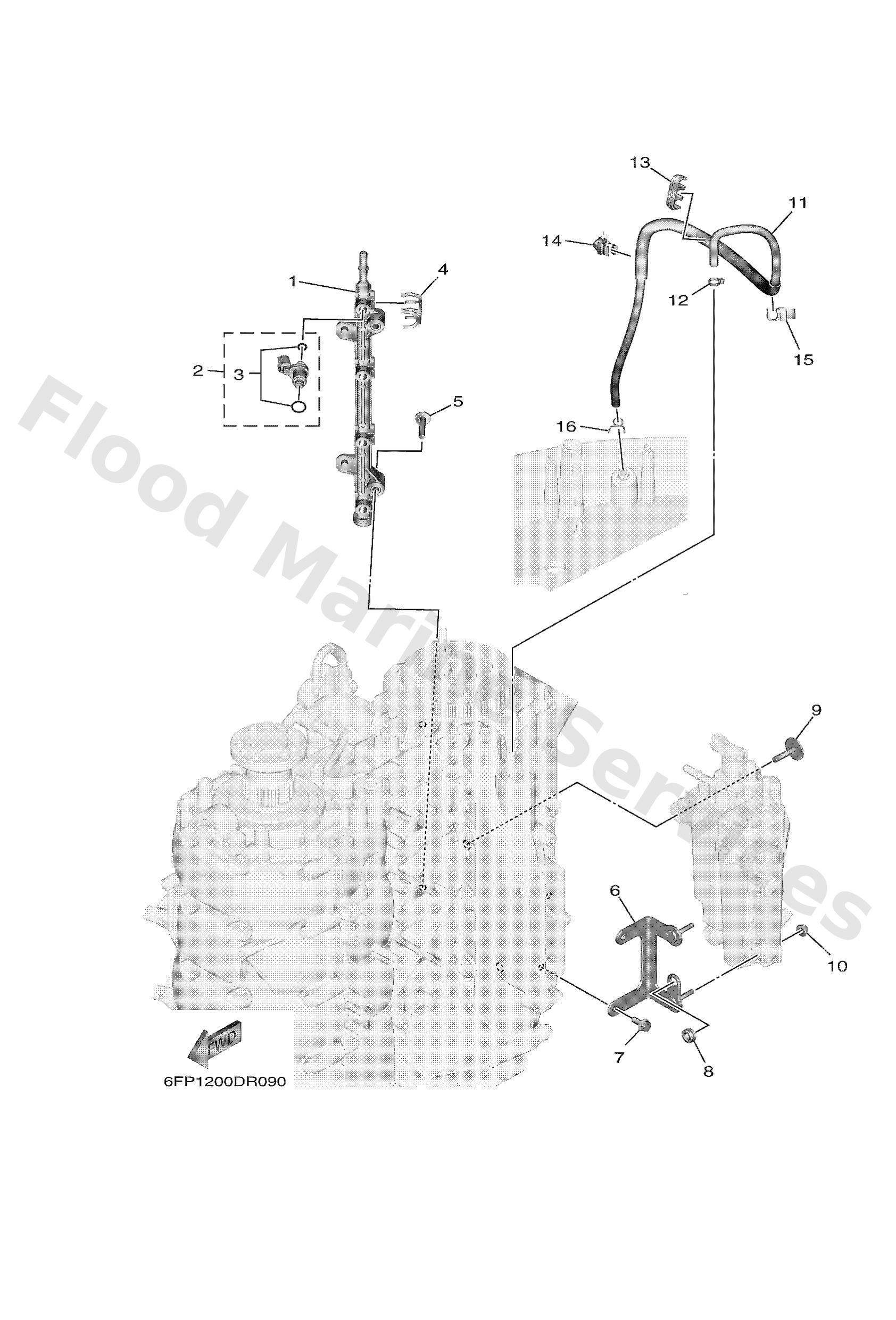

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
6FP1316100
Pipe, delivery 1
Loading…
↗
2
6FP1376100
Injector
Loading…
↗
3
6C51410B00
Packing kit
Loading…
↗
4
6FP1357700
Clip
Loading…
↗
5
9011906122
Bolt, with washer
Loading…
↗
6
6FP2442200
Plate
Loading…
↗
7
9589506014
Bolt, flange deep recess
Loading…
↗
8
9048011006
Grommet
Loading…
↗
9
9011906M61
Bolt, with washer
Loading…
↗
10
9017906M28
Nut(63v)
Loading…
↗
11
6FP4254200
Pipe
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
9046410011
Clamp
Loading…
↗
14
9046409021
Clamp
Loading…
↗
15
9046409013
Clamp
Loading…
↗
16
9046708M18
Clip
Loading…
↗
