F130AET (2018)
INTAKE 3

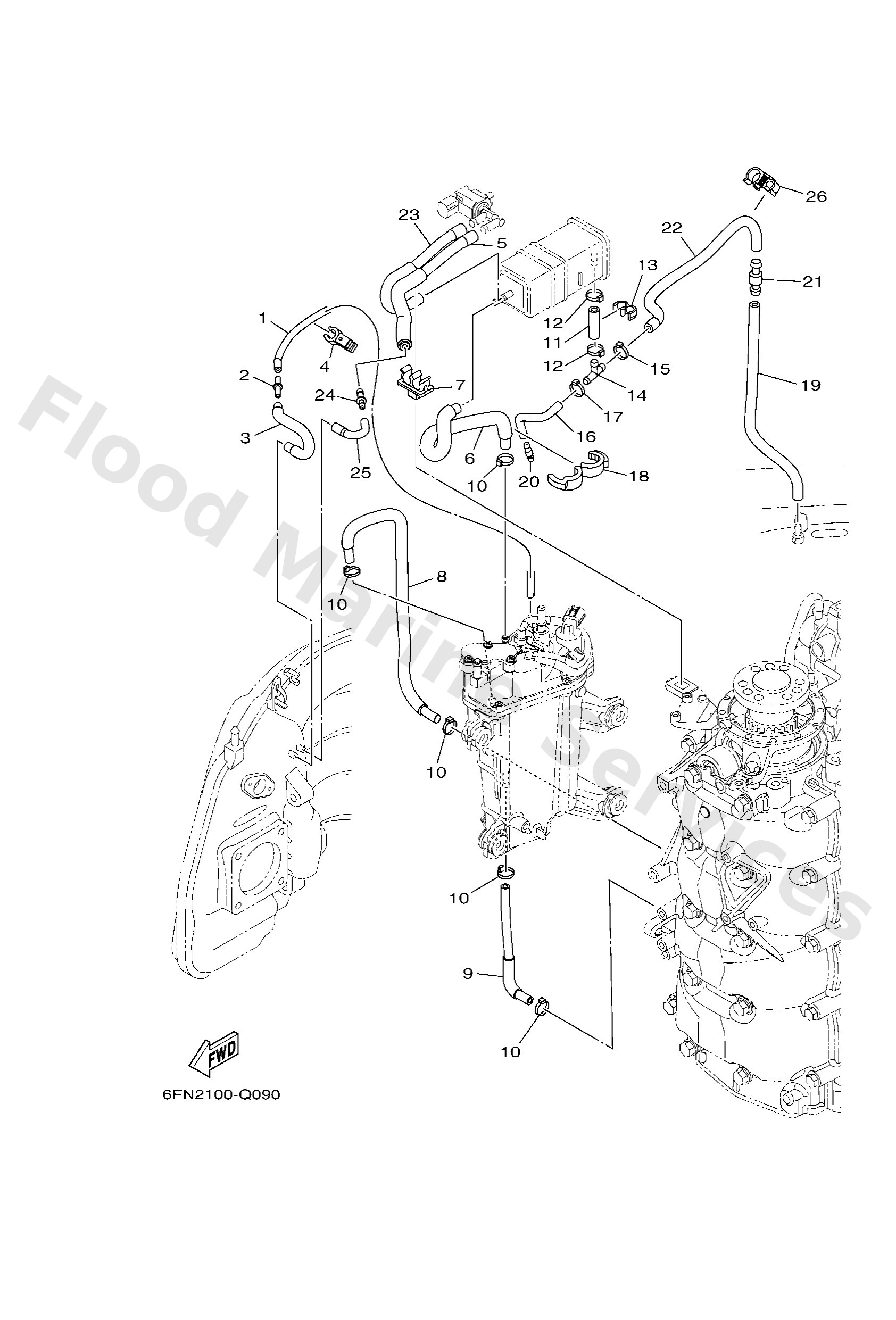

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
6EK1353200
Hose, vacuum sensing 3
Loading…
↗
2
5PS1456800
Joint
Loading…
↗
3
6EM1475H00
Pipe 5
Loading…
↗
4
9046412006
Clamp
Loading…
↗
5
6EM2416A00
Hose
Loading…
↗
6
6EM1475A00
Pipe 1
Loading…
↗
7
9046411012
Clamp
Loading…
↗
8
6EK1257600
Hose 1
Loading…
↗
9
6EK1257700
Hose 2
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
6AW1354510
Hose 1
Loading…
↗
13
9046410M57
Clamp
Loading…
↗
14
6882437800
Pipe, joint
Loading…
↗
16
6EK1354600
Hose 2
Loading…
↗
18
9046416001
Clamp
Loading…
↗
19
6EK1354700
Hose 3
Loading…
↗
20
6E52174400
Breezer
Loading…
↗
21
63D2174400
Breather
Loading…
↗
22
6EK1354801
Hose, air 4
Loading…
↗
23
6EK1475F00
Pipe 3
Loading…
↗
24
6EK1498900
Orifice, air vent
Loading…
↗
25
6EM1475G00
Pipe 4
Loading…
↗
26
9046412010
Clamp
Loading…
↗
