F200D (2025)
INTAKE 3

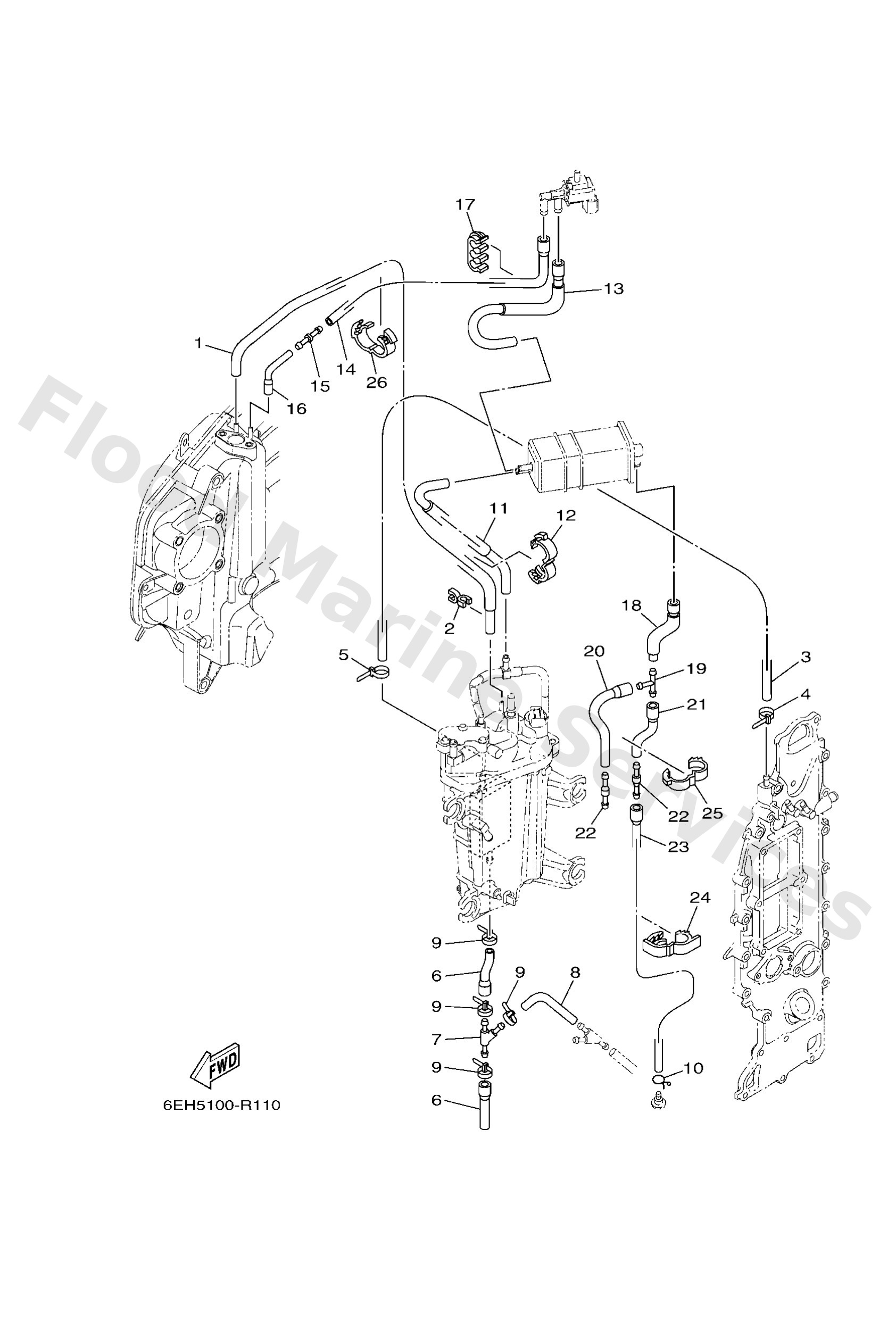

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
6DA1353200
Hose, vacuum sensing 3
Loading…
↗
2
9046407M41
Clamp(62y)
Loading…
↗
3
9044509120
Hose (l1500)
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
6
6DA1257600
Hose 1
Loading…
↗
7
6CE2437700
Pipe, joint 2
Loading…
↗
8
9044510056
Hose (l85)
Loading…
↗
10
9046709M09
Clip(6k8)
Loading…
↗
11
6DA1475A00
Pipe 1
Loading…
↗
12
9046416001
Clamp
Loading…
↗
13
6DA1475F00
Pipe 3
Loading…
↗
14
6DA2416A00
Hose
Loading…
↗
15
6CB1498900
Orifice, air vent
Loading…
↗
16
6DA1475G00
Pipe 4
Loading…
↗
17
9046410011
Clamp
Loading…
↗
18
6DA1354500
Hose 1
Loading…
↗
19
6882437800
Pipe, joint
Loading…
↗
20
68V1354610
Hose 2
Loading…
↗
21
6DA1354800
Hose, air 4
Loading…
↗
22
6E52174400
Breezer
Loading…
↗
23
6DA1354700
Hose 3
Loading…
↗
24
9046418004
Clamp
Loading…
↗
