F80BET (2005)
INTAKE 3

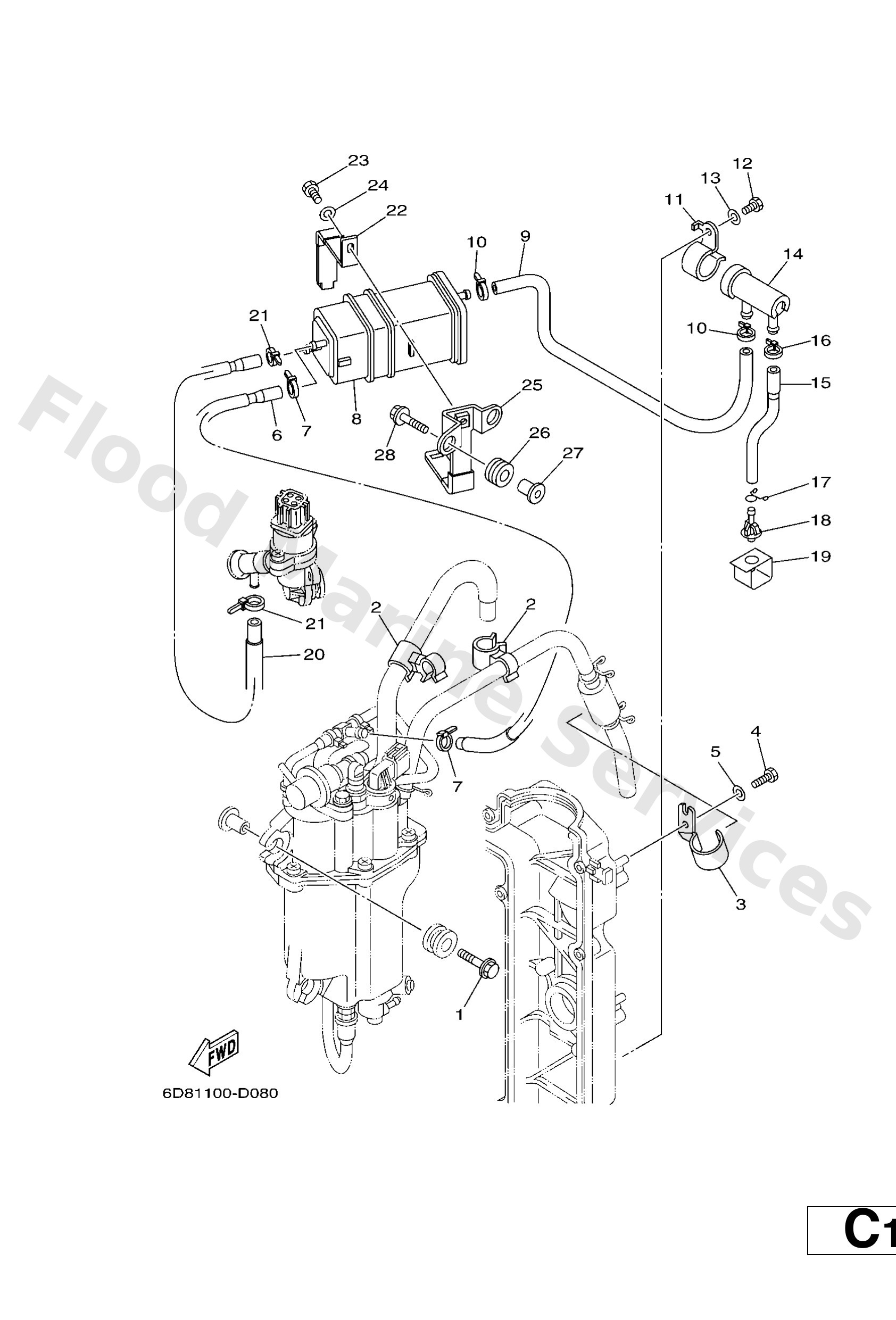

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
9011906M08
Bolt, with washer
Loading…
↗
2
9046415007
Clamp
Loading…
↗
3
6D81342800
Bracket, strainer 1
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
6D82431400
Pipe 4
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
69J2417000
Canister assembly
Loading…
↗
9
6D82431500
Pipe 5
Loading…
↗
11
6D82417H00
Clamp 1
Loading…
↗
12
9709506010
Bolt
Loading…
↗
14
69J2450200
Filter, fuel
Loading…
↗
15
6D82431600
Pipe 6
Loading…
↗
17
9046709M03
Clip(6k8)
Loading…
↗
18
69J4439100
Nipple, hose
Loading…
↗
19
6D82413X00
Plate
Loading…
↗
20
6D82431700
Pipe 7
Loading…
↗
22
69J2419A00
Holder
Loading…
↗
23
9709506016
Bolt, hexagon deep recess
Loading…
↗
25
6D82134X00
Bracket, canister
Loading…
↗
26
9048010M23
Grommet(6k7)
Loading…
↗
27
9038706M60
Collar (6h3)
Loading…
↗
28
9011906M59
Bolt, with washer
Loading…
↗
