FL115AET (2014)
INTAKE 3

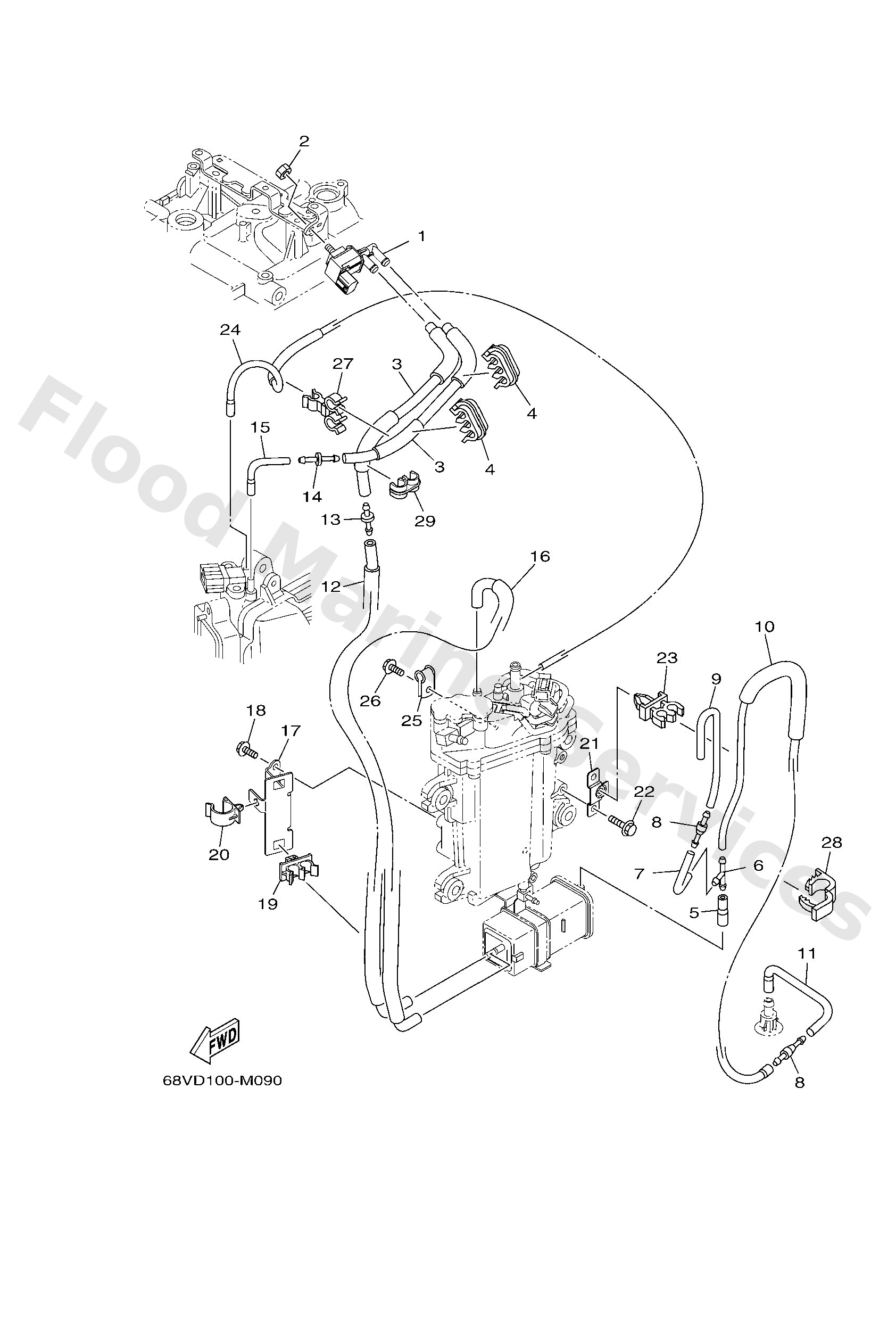

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
6C58612000
Solenoid valve assembly
Loading…
↗
2
9538006600
Nut(661)
Loading…
↗
3
68V2416A00
Hose
Loading…
↗
4
9046410011
Clamp
Loading…
↗
5
6AW1354510
Hose 1
Loading…
↗
6
6882437800
Pipe, joint
Loading…
↗
7
68V1354610
Hose 2
Loading…
↗
8
6E52174400
Breezer
Loading…
↗
9
6CB1354700
Hose 3
Loading…
↗
10
68V1354800
Hose, air 4
Loading…
↗
11
68V1248300
Pipe 3
Loading…
↗
12
68V1475F00
Pipe 3
Loading…
↗
13
6G82437600
Pipe, joint 1
Loading…
↗
14
6CB1498900
Orifice, air vent
Loading…
↗
15
68V1475G01
Pipe 4
Loading…
↗
16
68V1475A00
Pipe 1
Loading…
↗
17
68V2475H00
Bracket, seat lever 1
Loading…
↗
18
9589506010
Bolt, flange(7ht)
Loading…
↗
19
9046411012
Clamp
Loading…
↗
20
9046420006
Clamp
Loading…
↗
21
68V2475J00
Bracket, seat lever 2
Loading…
↗
23
9046407009
Clamp
Loading…
↗
24
68V1353211
Hose, vacuum sensing 3
Loading…
↗
25
9046104011
Clamp 6208236100
Loading…
↗
27
9046410006
Clamp
Loading…
↗
28
9046418004
Clamp
Loading…
↗
29
9046412224
Clamp(4pe)
Loading…
↗
