FL150BET (2012)
INTAKE 3

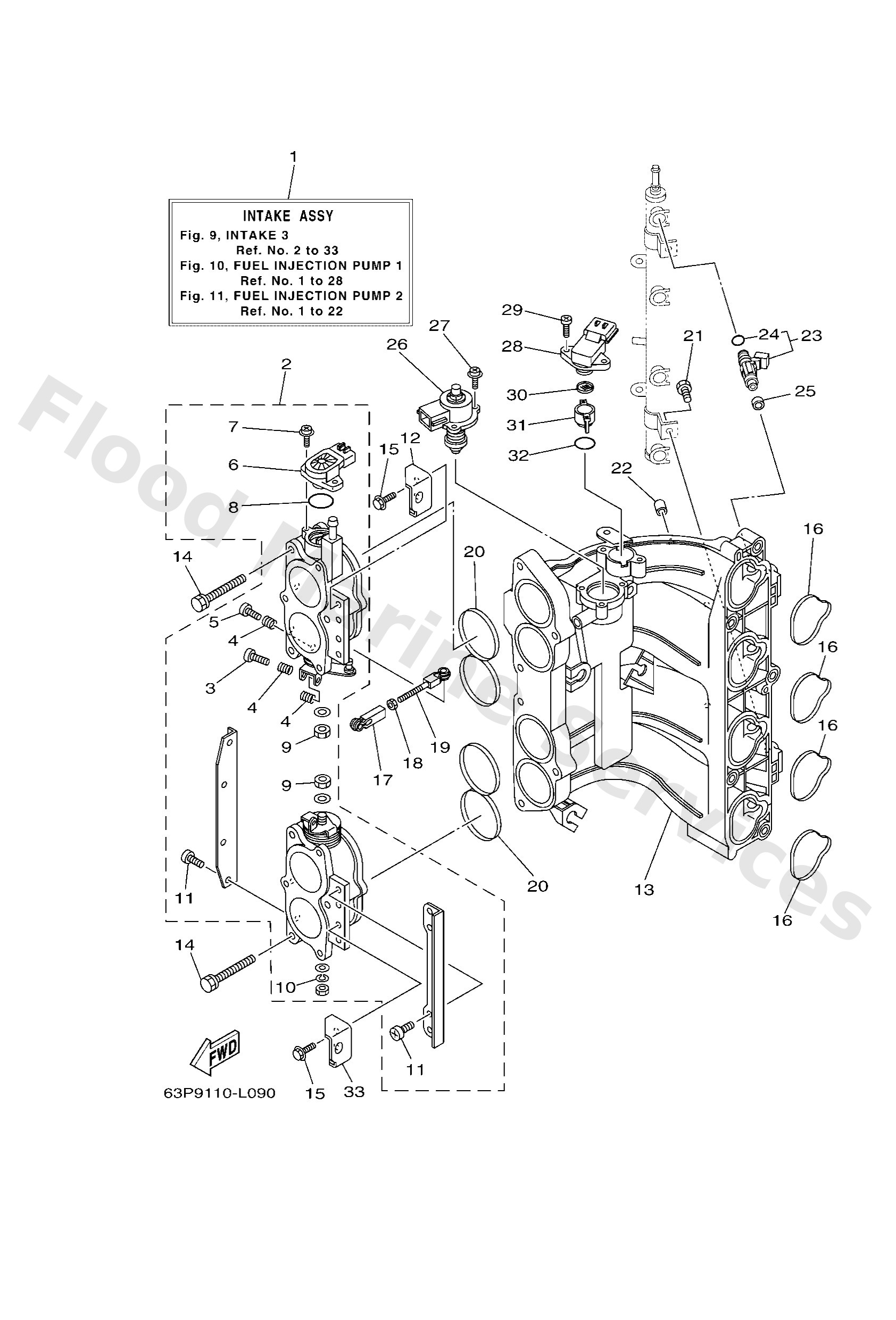

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
63P1420022
Intake assembly
Loading…
↗
2
63P1375101
Body, throttle 1
Loading…
↗
3
69J1432100
Screw, throttle
Loading…
↗
4
68V1433100
Spring, throttle valve
Loading…
↗
5
68V1432300
Screw, air adjusting
Loading…
↗
6
6S18588500
Throttle sensor assembly
Loading…
↗
7
68V8114501
Screw 1
Loading…
↗
8
68V8182L00
O-ring 1
Loading…
↗
9
3CF1459400
Nut
Loading…
↗
10
68V1435600
Washer, spring
Loading…
↗
11
68V1456500
Screw
Loading…
↗
12
63P1429100
Bracket 1
Loading…
↗
13
63P1364100
Manifold 1
Loading…
↗
14
63P1449600
Bolt
Loading…
↗
15
9759506516
Bolt, with washer(6r6)
Loading…
↗
16
63P1364500
Gasket, manifold 1
Loading…
↗
17
6H44123700
Joint, link
Loading…
↗
18
9538005700
Nut (656)
Loading…
↗
19
6824123801
Joint, link
Loading…
↗
20
63P1355700
Gasket
Loading…
↗
21
63P1444600
Bolt
Loading…
↗
22
63P1364300
Cap
Loading…
↗
23
63P1376101
Injector
Loading…
↗
24
68V1416A00
O-ring
Loading…
↗
25
68V1376600
Rubber, injector
Loading…
↗
26
63P1312A01
Valve, control
Loading…
↗
27
68V8114601
Screw 2
Loading…
↗
28
63P8238000
Sensor, pressure
Loading…
↗
29
68V8114700
Screw 3
Loading…
↗
30
63P1390500
Filter comp.
Loading…
↗
31
63P1389800
Holder
Loading…
↗
32
63P1376900
O-ring
Loading…
↗
33
63P1429200
Bracket 2
