Yamaha Outboard Parts - INTAKE 3 - FL150DET (2019) | Flood Marine

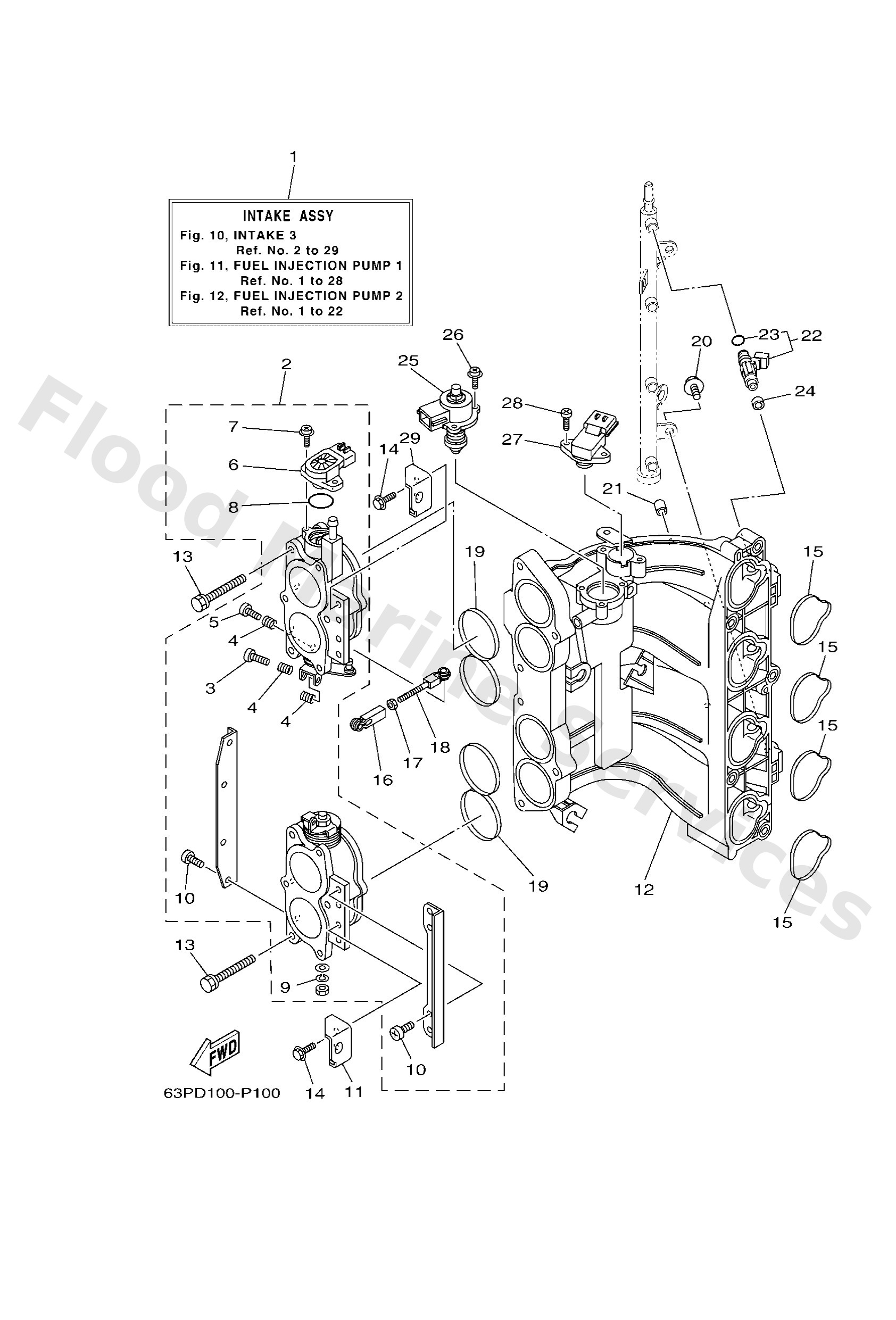

Diagram: INTAKE 3

Diagram

Parts List

Reference
Description
Price


1
63P1420081
Intake assembly
Loading…

↗
2
63P1375120
Body, throttle 1
Loading…

↗
3
69J1432100
Screw, throttle
Loading…

↗
4
68V1433100
Spring, throttle valve
Loading…

↗
5
68V1432300
Screw, air adjusting
Loading…

↗
6
6S18588500
Throttle sensor assembly
Loading…

↗
7
68V8114501
Screw 1
Loading…

↗
8
68V8182L00
O-ring 1
Loading…

↗
9
68V1435600
Washer, spring
Loading…

↗
10
68V1456500
Screw
Loading…

↗
11
63P1429100
Bracket 1
Loading…

↗
12
63P1364110
Manifold, intake 1
Loading…

↗
13
63P1449600
Bolt
Loading…

↗
14
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
15
63P1364500
Gasket, manifold 1
Loading…

↗
16
6H44123700
Joint, link
Loading…

↗
17
9538005700
Nut (656)
Loading…

↗
18
6824123801
Joint, link
Loading…

↗
19
63P1355700
Gasket
Loading…

↗
20
6P21444600
Bolt
Loading…

↗
21
63P1364300
Cap
Loading…

↗
22
63P1376101
Injector
Loading…

↗
23
68V1416A00
O-ring
Loading…

↗
24
68V1376600
Rubber, injector
Loading…

↗
25
63P1312A01
Valve, control
Loading…

↗
26
68V8114601
Screw 2
Loading…

↗
27
63P8238000
Sensor, pressure
Loading…

↗
28
68V8114700
Screw 3
Loading…

↗
29
63P1429200
Bracket 2
Loading…

↗
