FL350AET (2013)
INTAKE 3

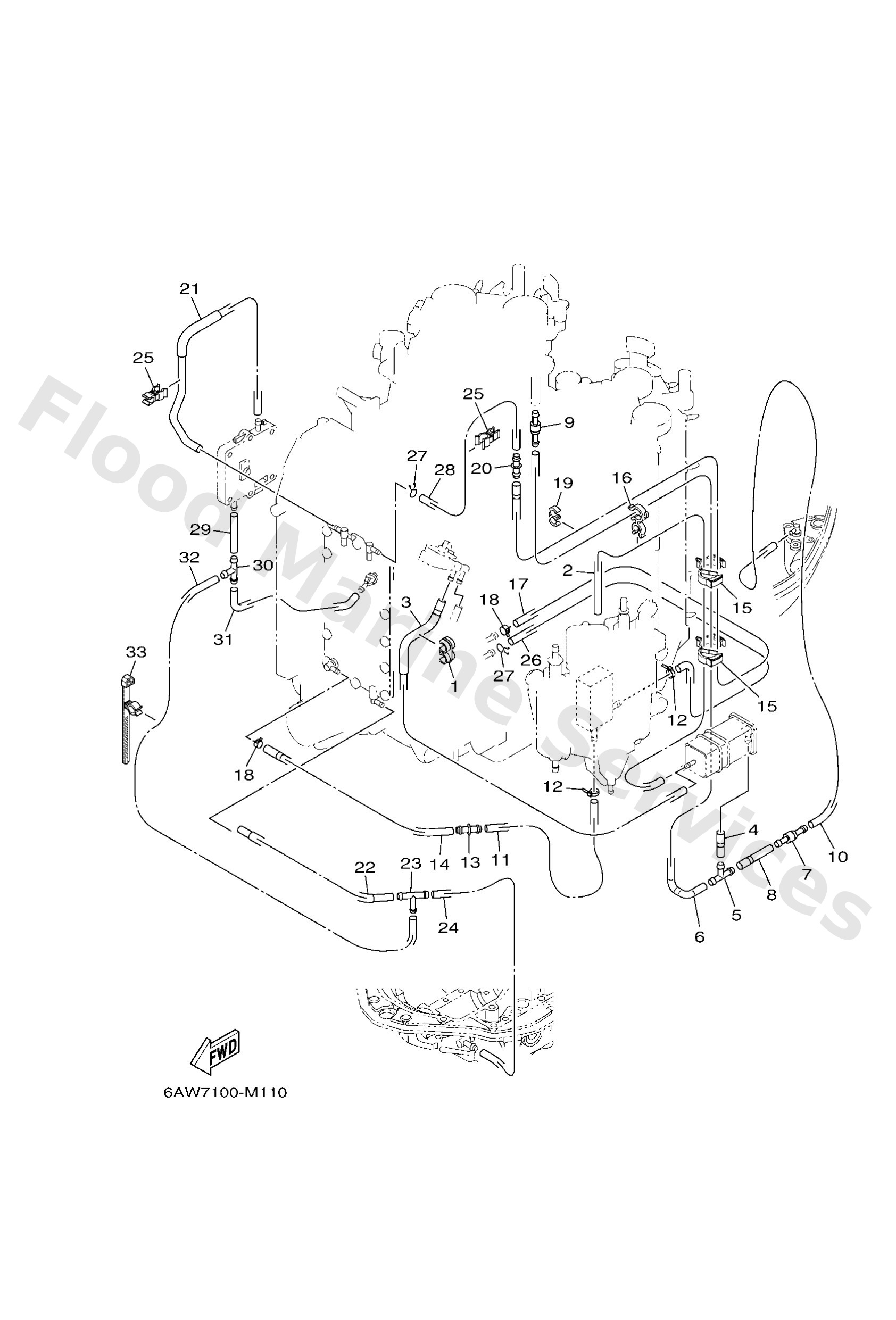

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
9046412224
Clamp(4pe)
Loading…
↗
2
6AW1475A10
Pipe 1
Loading…
↗
3
6AW2431210
Pipe 2
Loading…
↗
4
6AW1354510
Hose 1
Loading…
↗
5
6882437800
Pipe, joint
Loading…
↗
6
6AW1354810
Hose, air 4
Loading…
↗
7
6E52174400
Breezer
Loading…
↗
8
6CB1354800
Hose, air 4
Loading…
↗
10
6AW1354710
Hose 3
Loading…
↗
11
9044509104
Hose (l1500)
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
6CE2437600
Pipe, joint 1
Loading…
↗
14
6AW1258900
Hose 6
Loading…
↗
15
9046432002
Clamp
Loading…
↗
16
9046409M42
Clamp(6b0)
Loading…
↗
17
6AW1257620
Hose 1
Loading…
↗
18
9046711136
Clip
Loading…
↗
19
9046460067
Clamp(56r)
Loading…
↗
21
6AW1257700
Hose 2
Loading…
↗
22
6AW1257800
Hose 3
Loading…
↗
23
68F1448500
Pipe, joint
Loading…
↗
24
6AW1257910
Hose 4
Loading…
↗
25
9046410010
Clamp
Loading…
↗
26
9044509120
Hose (l1500)
Loading…
↗
27
9046708M10
Clip, pipe 6162435600
Loading…
↗
28
6AW1248300
Pipe 3
Loading…
↗
29
9044509026
Hose (l420)
Loading…
↗
31
6AW1248210
Pipe 2
Loading…
↗
32
6AW1258800
Hose 5
Loading…
↗
33
9046430005
Clamp
Loading…
↗
