Yamaha Outboard Parts - Intake - 115BETO (1992) | Flood Marine

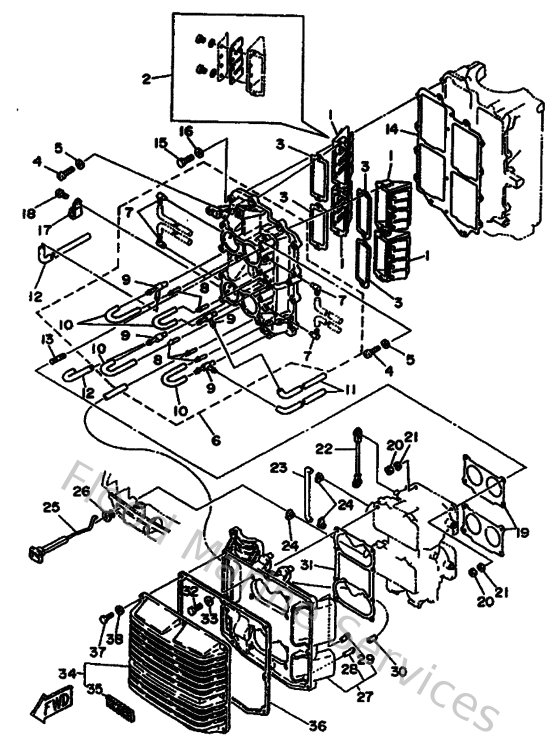

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6E5136100000
Reed valve assembly
Loading…

↗
2
6E5W00040000
Reed set
Loading…

↗
3
6E513621A100
Gasket, valve seat
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
6E5136411094
Manifold 1
Loading…

↗
7
6E5135520100
Nozzle
Loading…

↗
8
624144850000
Pipe, joint
Loading…

↗
9
6E5113700000
Check valve assembly
Loading…

↗
10
9044507M2800
Hose (l200)
Loading…

↗
11
9044507M9000
Hose (l390)
Loading…

↗
12
9044507M4600
Hose (l390)
Loading…

↗
13
9011606M3000
Bolt, stud(6e5)
Loading…

↗
14
6E513645A100
Gasket, manifold 1
Loading…

↗
15
9010106M2700
Bolt
Loading…

↗
16
929900660000
Washer, plain (646)
Loading…

↗
17
904650802800
Clamp (1e6)
Loading…

↗
18
970130601200
Bolt(gh1)
Loading…

↗
19
6E514198A200
Gasket
Loading…

↗
20
953800660000
Nut(661)
Loading…

↗
21
929900610000
Washer(6a1)
Loading…

↗
22
6E5412170100
Rod, accel. lever
Loading…

↗
23
6E5412560100
Rod, choke 1
Loading…

↗
24
661412620200
Joint, choke lever
Loading…

↗
25
6E5412710200
Knob, choke
Loading…

↗
26
689412730000
Grommet
Loading…

↗
27
6E5144171094
Cover 1
Loading…

↗
29
6E5144850000
Pipe, joint
Loading…

↗
30
9044507M2300
Hose (l570)
Loading…

↗
31
6E514483A100
Gasket
Loading…

↗
32
973130602000
Bolt(7u8)
Loading…

↗
34
6E5Y106P0000
Cover 2
Loading…

↗
35
6E51441K0000
Emblem 1
Loading…

↗
36
6E514416A100
Gasket, air cleaner
Loading…

↗
37
973950602000
Bolt(7u8)
Loading…

↗
38
929900620000
Ybs66-6 washer, plain
Loading…

↗
