150AETOL (1998)
Intake

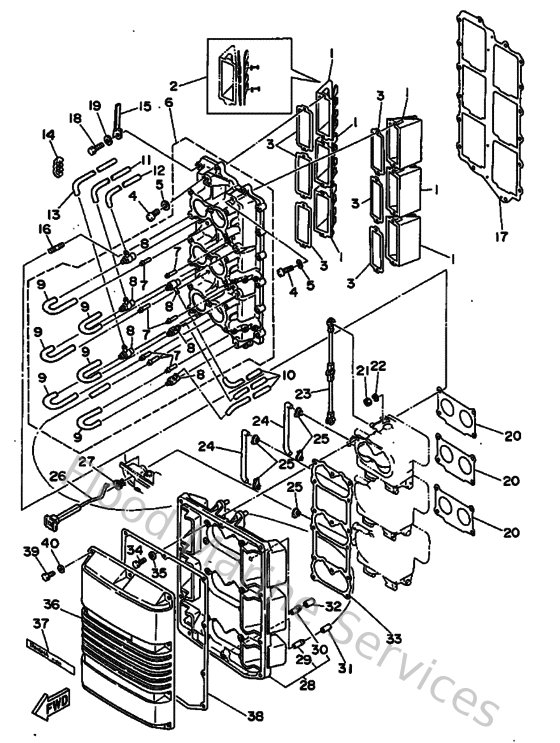

Diagram: Intake
Parts List
Reference
Description
Price
1
6G5136100000
Reed valve assembly
Loading…
↗
2
6E5W00040000
Reed set
Loading…
↗
3
6E513621A100
Gasket, valve seat
Loading…
↗
4
978800501600
Screw, pan head(6b0)
Loading…
↗
5
929900560000
Washer, plain (646)
Loading…
↗
6
6G513641001S
Manifold 1
Loading…
↗
7
624144850000
Pipe, joint
Loading…
↗
8
6E5113700000
Check valve assembly
Loading…
↗
9
9044507M2800
Hose (l200)
Loading…
↗
10
9044507M9000
Hose (l390)
Loading…
↗
11
9044507M4600
Hose (l390)
Loading…
↗
12
9044507M0900
Hose (l390)
Loading…
↗
13
9044507M5900
Hose (l770)
Loading…
↗
14
9046407M0500
Clamp (6g5)
Loading…
↗
15
9046507M2000
Clamp
Loading…
↗
16
9011606M3000
Bolt, stud(6e5)
Loading…
↗
17
6G513645A100
Gasket, manifold 1
Loading…
↗
18
970130602500
Bolt(62y)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
6E514198A200
Gasket
Loading…
↗
21
953800660000
Nut(661)
Loading…
↗
22
929950610000
Washer(6a1)
Loading…
↗
23
6G5412170100
Rod, accel. lever
Loading…
↗
24
6E5412560100
Rod, choke 1
Loading…
↗
25
661412620200
Joint, choke lever
Loading…
↗
26
6E5412710300
Knob, choke
Loading…
↗
27
689412730000
Grommet
Loading…
↗
28
6G5144171094
Cover
Loading…
↗
30
6E5144850000
Pipe, joint
Loading…
↗
31
9044507MF100
Hose (l570)
Loading…
↗
32
647143956000
Cap,over flow pipe
Loading…
↗
33
6G514483A100
Gasket, plate
Loading…
↗
34
970130602000
Bolt(62y)
Loading…
↗
35
929030660000
Washer, plain (646)
Loading…
↗
36
6G5144180000
Cover 2
Loading…
↗
38
6G514416A100
Gasket, air cleaner
Loading…
↗
39
970950602000
Bolt(7u8)
Loading…
↗
40
929950660000
Washer, plain (646)
Loading…
↗
