15DWH (1993)
Intake

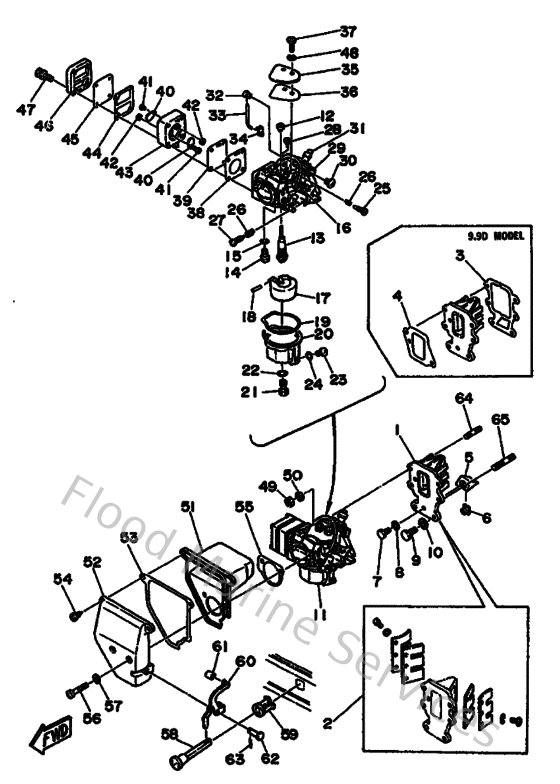

Diagram: Intake
Parts List
Reference
Description
Price
3
68213621A000
Gasket, valve seat
Loading…
↗
4
67714198A000
Gasket
Loading…
↗
5
6E7136250000
Spacer, Reed Valve
Loading…
↗
6
6E7135880100
Nut
Loading…
↗
7
970130601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
11
6E7143017400
Carburetor Assembly 1
Loading…
↗
12
6E7143422600
Jet, Pilot #52 (#52)
Loading…
↗
13
6E8143410000
Nozzle Main
Loading…
↗
14
6E8143901200
Needle valve assembly
Loading…
↗
15
367141950000
Washer, valve seat
Loading…
↗
16
367143960000
Pipe, over flow
Loading…
↗
17
6E7143850000
Float
Loading…
↗
18
647143860000
Pin, float
Loading…
↗
19
677143840100
Gasket, float chamber
Loading…
↗
20
6E7143810000
Body, float chamber
Loading…
↗
21
677143435200
Jet Main (#104)
Loading…
↗
22
1J2143980000
Packing
Loading…
↗
24
655143980000
Gasket
Loading…
↗
25
647143230000
Screw, air adjusting
Loading…
↗
