20CMH (1985)
Intake

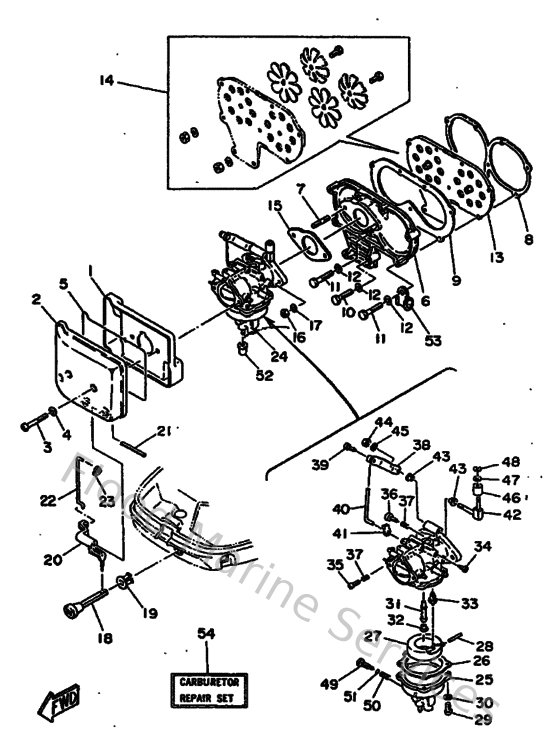

Diagram: Intake
Parts List
Reference
Description
Price
1
695144170000
Cover 1
Loading…
↗
2
695144180100
Cover 2
Loading…
↗
3
978030503000
Ybs86-530 screw,panhead
Loading…
↗
4
929030560000
Washer, plain (646)
Loading…
↗
5
695144760000
O-Ring (689)
Loading…
↗
6
64813641021S
Manifold 1
Loading…
↗
7
9011606M0800
Bolt, stud (689)
Loading…
↗
8
648136210000
Gasket, valve seat
Loading…
↗
9
648136450000
Gasket, manifold 1
Loading…
↗
10
973130602500
Bolt
Loading…
↗
11
970140603500
Bolt(3rv)
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
689136100000
Reed valve assembly
Loading…
↗
14
689W00040000
Reed set
Loading…
↗
15
648141980000
Gasket
Loading…
↗
16
953800660000
Nut(661)
Loading…
↗
18
682412710000
Knob, choke
Loading…
↗
19
689412730000
Grommet
Loading…
↗
20
689412520000
Lever, choke 1
Loading…
↗
21
916904004800
Pin, spring (689)
Loading…
↗
22
695412560000
Rod, Choke 1
Loading…
↗
23
661412620200
Joint, choke lever
Loading…
↗
25
664143810100
Body Float Chamber
Loading…
↗
26
648143840100
Gasket,float chamber
Loading…
↗
27
648143850000
Float
Loading…
↗
28
689143860000
Pin, float
Loading…
↗
29
985030401200
Screw, pan head (686)
Loading…
↗
30
929900410000
Ybs67-4 washer, spring
Loading…
↗
31
6A9143410000
Nozzle, Main
Loading…
↗
32
689143436600
Jet, main (#133)
Loading…
↗
33
648143901400
Needle valve assembly
Loading…
↗
34
648143423100
Jet, Pilot (# 62)
Loading…
↗
35
648143210000
Screw, pan head(ga5)
Loading…
↗
36
647143230000
Screw, air adjusting
Loading…
↗
37
646142120100
Spring, pilot adjusting
Loading…
↗
38
648412100100
Accel. Arm Assembly
Loading…
↗
40
656412410000
Rod, Link
Loading…
↗
42
689412160000
Sheave Shaft, Acc L
Loading…
↗
43
903860500200
Bush 626412910000
Loading…
↗
45
929900510000
Ybs67-5 washer, spring
Loading…
↗
46
664412310000
Collar Guide Pin (Carb)
Loading…
↗
47
929900520000
Ybs66-5 washer, plain
Loading…
↗
48
934300403100
Circlip(655 carb)
Loading…
↗
49
646143940000
Valve, Drain
Loading…
↗
50
646142230100
Spring Drain Valve (664)
Loading…
↗
51
646143970000
Ring O (664)
Loading…
↗
52
648143826000
Cap Drain Pipe
Loading…
↗
53
904610601500
Clamp (6a4)
Loading…
↗
54
689W00930000
Carburetor repair kit
Loading…
↗
