Yamaha Outboard Parts - Intake - 20CMH (1992) | Flood Marine

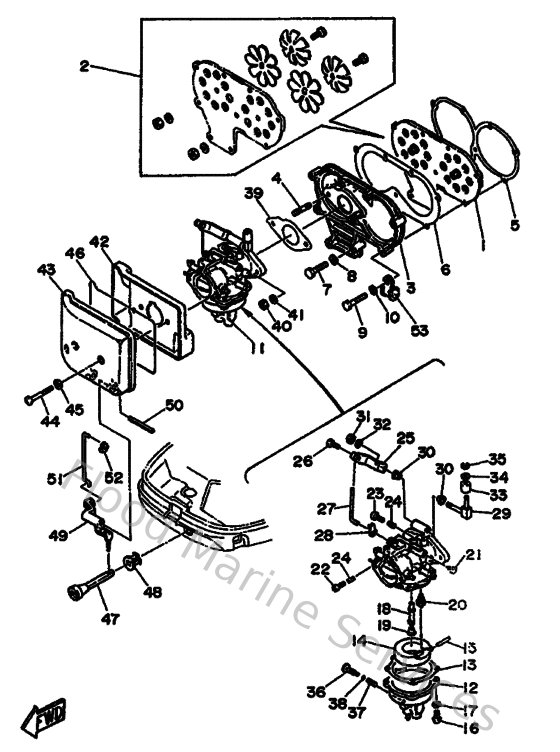

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
689136100100
Reed valve assembly
Loading…

↗
2
689W00040000
Reed set
Loading…

↗
3
648136410194
Manifold, Intake 1
Loading…

↗
4
9011606M3000
Bolt, stud(6e5)
Loading…

↗
5
64813621A000
Gasket, valve seat
Loading…

↗
6
64813645A000
Gasket, manifold 1
Loading…

↗
7
973130602500
Bolt
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
970130603500
Bolt(3rv)
Loading…

↗
12
664143810200
Body Float Chamber
Loading…

↗
13
648143840100
Gasket,float chamber
Loading…

↗
14
648143850000
Float
Loading…

↗
15
6E5143860100
Pin, float
Loading…

↗
16
985800401200
Screw, pan head (686)
Loading…

↗
17
929900410000
Ybs67-4 washer, spring
Loading…

↗
18
6A9143410000
Nozzle, Main
Loading…

↗
19
689143436600
Jet, main (#133)
Loading…

↗
20
648143901400
Needle valve assembly
Loading…

↗
21
648143423100
Jet, Pilot (# 62)
Loading…

↗
22
985030401400
Screw, pan head(ga5)
Loading…

↗
23
647143230000
Screw, air adjusting
Loading…

↗
24
646142120100
Spring, pilot adjusting
Loading…

↗
25
648412100100
Accel. Arm Assembly
Loading…

↗
27
656412410000
Rod, Link
Loading…

↗
28
661412620200
Joint, choke lever
Loading…

↗
29
648W41210000
Sheave Shaft, Accel Link
Loading…

↗
30
903860500200
Bush 626412910000
Loading…

↗
31
953030570000
Nut (656)
Loading…

↗
32
929900510000
Ybs67-5 washer, spring
Loading…

↗
33
664412310000
Collar Guide Pin (Carb)
Loading…

↗
34
929900520000
Ybs66-5 washer, plain
Loading…

↗
35
934300403100
Circlip(655 carb)
Loading…

↗
36
646143940000
Valve, Drain
Loading…

↗
37
646142230100
Spring Drain Valve (664)
Loading…

↗
38
646143970000
Ring O (664)
Loading…

↗
40
953800660000
Nut(661)
Loading…

↗
42
695144170000
Cover 1
Loading…

↗
44
985800553000
Ybs86-530 screw,panhead
Loading…

↗
45
929900560000
Washer, plain (646)
Loading…

↗
46
695144760000
O-Ring (689)
Loading…

↗
47
682412710100
Knob, choke
Loading…

↗
48
689412730000
Grommet
Loading…

↗
49
689412520100
Lever, choke 1
Loading…

↗
50
916904004800
Pin, spring (689)
Loading…

↗
51
695412560000
Rod, Choke 1
Loading…

↗
53
9046106M0100
Clamp (6a4)
Loading…

↗
