20CMH (2001)
Intake

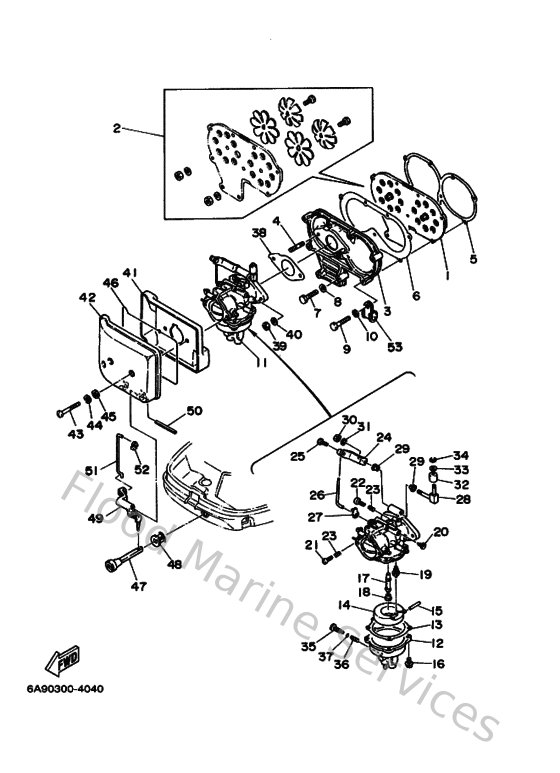

Diagram: Intake
Parts List
Reference
Description
Price
1
689136100100
Reed valve assembly
Loading…
↗
2
689W00040000
Reed set
Loading…
↗
3
648136410194
Manifold, Intake 1
Loading…
↗
4
9011606M3000
Bolt, stud(6e5)
Loading…
↗
5
64813621A100
Gasket, valve seat
Loading…
↗
6
64813645A000
Gasket, manifold 1
Loading…
↗
7
970130602500
Bolt(62y)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
970130603500
Bolt(3rv)
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
12
664143810200
Body Float Chamber
Loading…
↗
13
648143840100
Gasket,float chamber
Loading…
↗
14
648143850000
Float
Loading…
↗
15
689143860000
Pin, float
Loading…
↗
16
979800411200
Screw, pan head (686)
Loading…
↗
17
6A9143410000
Nozzle, Main
Loading…
↗
18
689143436600
Jet, main (#133)
Loading…
↗
19
61K143900000
Valve seat assembly
Loading…
↗
20
648143423100
Jet, Pilot (# 62)
Loading…
↗
21
664143210100
Screw, throttle
Loading…
↗
22
647143230000
Screw, air adjusting
Loading…
↗
23
646142120100
Spring, pilot adjusting
Loading…
↗
24
648412100100
Accel. Arm Assembly
Loading…
↗
25
650143270100
Screw
Loading…
↗
26
656412410000
Rod, Link
Loading…
↗
27
661412620200
Joint, choke lever
Loading…
↗
28
689412160000
Sheave Shaft, Acc L
Loading…
↗
29
903860500200
Bush 626412910000
Loading…
↗
30
953800570000
Nut (656)
Loading…
↗
31
929900510000
Ybs67-5 washer, spring
Loading…
↗
32
664412310000
Collar Guide Pin (Carb)
Loading…
↗
33
929900520000
Ybs66-5 washer, plain
Loading…
↗
34
934300403100
Circlip(655 carb)
Loading…
↗
35
646143940000
Valve, Drain
Loading…
↗
36
646142230100
Spring Drain Valve (664)
Loading…
↗
37
646143970000
Ring O (664)
Loading…
↗
38
64814198A000
Gasket
Loading…
↗
39
953800660000
Nut(661)
Loading…
↗
41
695144170000
Cover 1
Loading…
↗
42
695144180100
Cover 2
Loading…
↗
43
978800503000
Ybs86-530 screw,panhead
Loading…
↗
45
929900560000
Washer, plain (646)
Loading…
↗
46
9321162M2400
O-Ring (689)
Loading…
↗
47
682412710000
Knob, choke
Loading…
↗
48
689412730000
Grommet
Loading…
↗
49
689412520100
Lever, choke 1
Loading…
↗
50
916904004800
Pin, spring (689)
Loading…
↗
51
695412560000
Rod, Choke 1
Loading…
↗
