Yamaha Outboard Parts - Intake - 220AETL (1985) | Flood Marine

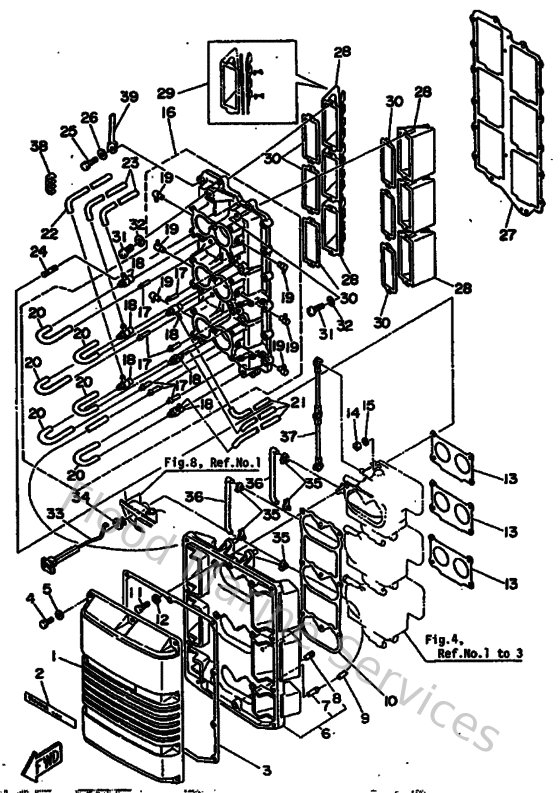

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6G5144180000
Cover 2
Loading…

↗
3
6G5144160000
Gasket, air cleaner
Loading…

↗
4
973130602000
Bolt(7u8)
Loading…

↗
5
929030660000
Washer, plain (646)
Loading…

↗
7
624144850000
Pipe, joint
Loading…

↗
8
6E5144850000
Pipe, joint
Loading…

↗
9
9044507M2300
Hose (l570)
Loading…

↗
10
6G5144830000
Gasket, plate
Loading…

↗
12
929900660000
Washer, plain (646)
Loading…

↗
13
6E5141980000
Gasket
Loading…

↗
14
953030660000
Nut(661)
Loading…

↗
15
929030610000
Washer(6a1)
Loading…

↗
16
6G513641111S
Manifold 1
Loading…

↗
18
6E5113750000
Nipple, Hose 1
Loading…

↗
19
6E5135520000
Nozzle
Loading…

↗
20
9044507MA300
Hose (l200)
Loading…

↗
21
9044507M4500
Hose (l390)
Loading…

↗
22
9044507M5900
Hose (l770)
Loading…

↗
23
9044507M4600
Hose (l390)
Loading…

↗
24
9011606M0800
Bolt, stud (689)
Loading…

↗
25
9010106M2700
Bolt
Loading…

↗
27
6G5136450000
Gasket, manifold 1
Loading…

↗
28
6E5136100000
Reed valve assembly
Loading…

↗
29
6E5W00040000
Reed set
Loading…

↗
30
6E513621A100
Gasket, valve seat
Loading…

↗
31
978030501600
Screw, pan head(6b0)
Loading…

↗
32
929030560000
Washer, plain (646)
Loading…

↗
33
6E5412710100
Knob, choke
Loading…

↗
34
689412730000
Grommet
Loading…

↗
35
661412620200
Joint, choke lever
Loading…

↗
36
6E5412560000
Rod, choke 1
Loading…

↗
37
6G5412170000
Rod, accel. lever
Loading…

↗
38
9046407M0500
Clamp (6g5)
Loading…

↗
39
9046507M2000
Clamp
Loading…

↗
