225AETOL (1987)
Intake

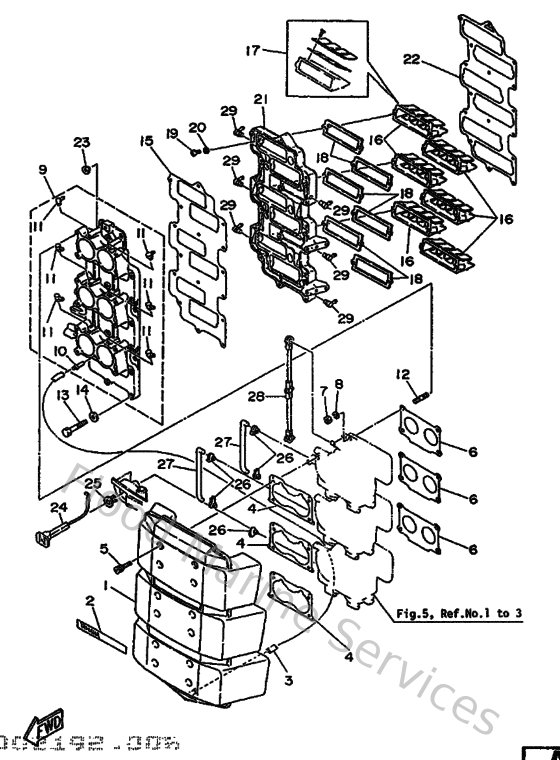

Diagram: Intake
Parts List
Reference
Description
Price
1
6K7144400000
Silencer assembly, intake
Loading…
↗
3
9044507M0200
Hose (l200)
Loading…
↗
4
6K7144830000
Gasket
Loading…
↗
5
9015906M0800
Screw, with washer(6k7)
Loading…
↗
6
6E5141980000
Gasket
Loading…
↗
7
953030660000
Nut(661)
Loading…
↗
8
929950610000
Washer(6a1)
Loading…
↗
10
624144850000
Pipe, joint
Loading…
↗
11
6E5135520000
Nozzle
Loading…
↗
12
9011606M3000
Bolt, stud(6e5)
Loading…
↗
13
970130605000
Bolt, hexagon
Loading…
↗
14
929030660000
Washer, plain (646)
Loading…
↗
15
6K713645A200
Gasket Manifold 1
Loading…
↗
16
6K7136100000
Reed valve assembly
Loading…
↗
17
6E5W00040000
Reed set
Loading…
↗
18
6K7136210000
Gasket, valve seat
Loading…
↗
19
978850501600
Screw, pan head(6b0)
Loading…
↗
20
929030560000
Washer, plain (646)
Loading…
↗
21
6K7136240000
Plate,reed Valve
Loading…
↗
22
6K713646A200
Gasket, manifold 2
Loading…
↗
23
9048010M2800
Grommet(6k7)
Loading…
↗
24
6K7412710000
Knob, Choke
Loading…
↗
25
689412730000
Grommet
Loading…
↗
26
661412620200
Joint, choke lever
Loading…
↗
27
6E5412560100
Rod, choke 1
Loading…
↗
28
6G5412170000
Rod, accel. lever
Loading…
↗
29
688113720000
Nipple, hose
Loading…
↗
