225BETOL (1990)
Intake

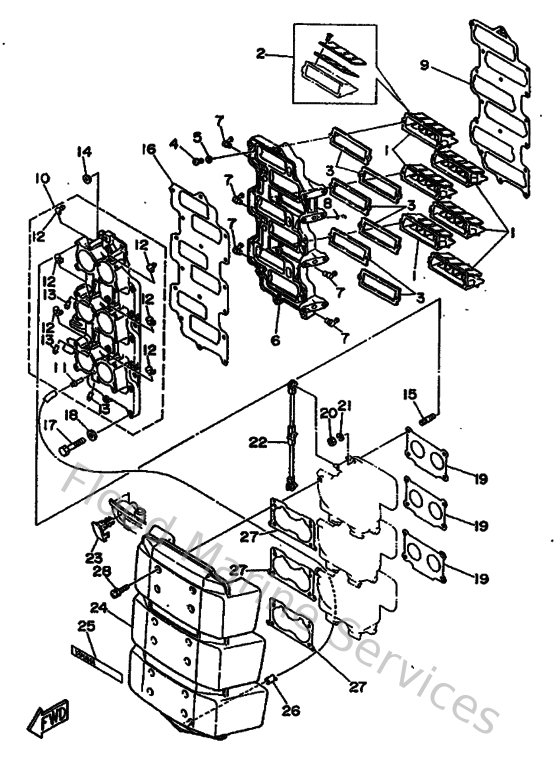

Diagram: Intake
Parts List
Reference
Description
Price
1
6K7136100000
Reed valve assembly
Loading…
↗
2
6E5W00040000
Reed set
Loading…
↗
3
6K7136210000
Gasket, valve seat
Loading…
↗
4
985800501600
Screw, pan head(6b0)
Loading…
↗
5
929900560000
Washer, plain (646)
Loading…
↗
6
6R5136240094
Plate,reed Valve
Loading…
↗
7
6H4113720100
Nipple, hose
Loading…
↗
8
6R5144850000
Pipe, joint
Loading…
↗
9
6K7136460000
Gasket, manifold 2
Loading…
↗
11
624144850000
Pipe, joint
Loading…
↗
12
6E5135520000
Nozzle
Loading…
↗
14
9048010M2800
Grommet(6k7)
Loading…
↗
15
9011606M3000
Bolt, stud(6e5)
Loading…
↗
16
6K7136450000
Gasket Manifold 1
Loading…
↗
17
973130605000
Bolt, hexagon
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
6E5141980000
Gasket
Loading…
↗
20
953800660000
Nut(661)
Loading…
↗
21
929950610000
Washer(6a1)
Loading…
↗
22
6G5412170100
Rod, accel. lever
Loading…
↗
24
6K7144400000
Silencer assembly, intake
Loading…
↗
26
9044507M0200
Hose (l200)
Loading…
↗
27
6K7144830000
Gasket
Loading…
↗
28
9015906M0800
Screw, with washer(6k7)
Loading…
↗
