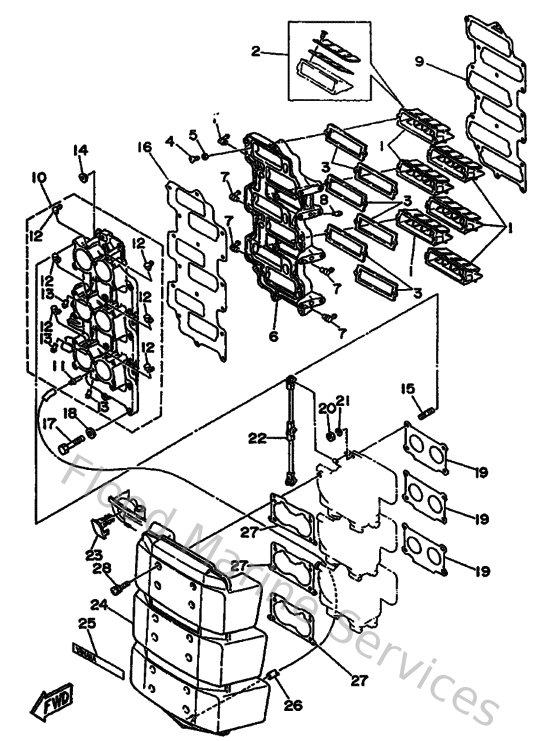

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6K7136100000
Reed valve assembly
Loading…

↗
2
6E5W00040000
Reed set
Loading…

↗
3
6K713621A100
Gasket, valve seat
Loading…

↗
6
6R5136240094
Plate,reed Valve
Loading…

↗
7
6H4113720100
Nipple, hose
Loading…

↗
8
6R5144850000
Pipe, joint
Loading…

↗
9
6K713646A100
Gasket, manifold 2
Loading…

↗
11
624144850000
Pipe, joint
Loading…

↗
12
6E5135520100
Nozzle
Loading…

↗
16
6K713645A100
Gasket Manifold 1
Loading…

↗
19
6E514198A200
Gasket
Loading…

↗
22
6G5412170100
Rod, accel. lever
Loading…

↗
24
6K7144400000
Silencer assembly, intake
Loading…

↗
27
6K7144830000
Gasket
Loading…

↗
