25NEMO (1997)
Intake

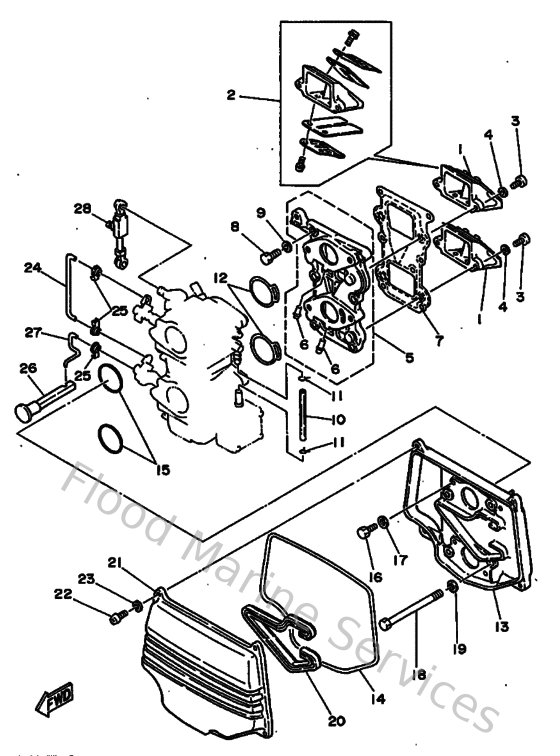

Diagram: Intake
Parts List
Reference
Description
Price
1
6L2136100000
Reed valve assembly
Loading…
↗
2
6L2W00040000
Reed set
Loading…
↗
3
985800501600
Screw, pan head(6b0)
Loading…
↗
4
929900560000
Washer, plain (646)
Loading…
↗
5
6L2136411000
Manifold 1
Loading…
↗
6
676144850000
Pipe, joint
Loading…
↗
7
6L2136210000
Gasket, valve seat
Loading…
↗
8
9010106M2700
Bolt
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
904450907800
Hose (l1500)
Loading…
↗
11
904670800400
Clip, pipe 6162435600
Loading…
↗
12
6L2141980000
Gasket
Loading…
↗
13
6L2144170000
Cover 1
Loading…
↗
14
6L2144760000
Seal
Loading…
↗
15
9321035M8600
O-ring(6l2)
Loading…
↗
16
970130501200
Bolt, hexagon
Loading…
↗
18
973900608500
Bolt, with washer
Loading…
↗
20
6L2144761100
Seal
Loading…
↗
21
6L2144180000
Cover 2
Loading…
↗
24
6J8412590000
Rod, choke 3
Loading…
↗
25
661412620200
Joint, choke lever
Loading…
↗
26
6J8412710100
Knob, choke
Loading…
↗
27
6L2412570000
Rod, choke 2
Loading…
↗
28
6L2412170000
Rod, accel. lever
Loading…
↗
