25QEO (1998)
Intake

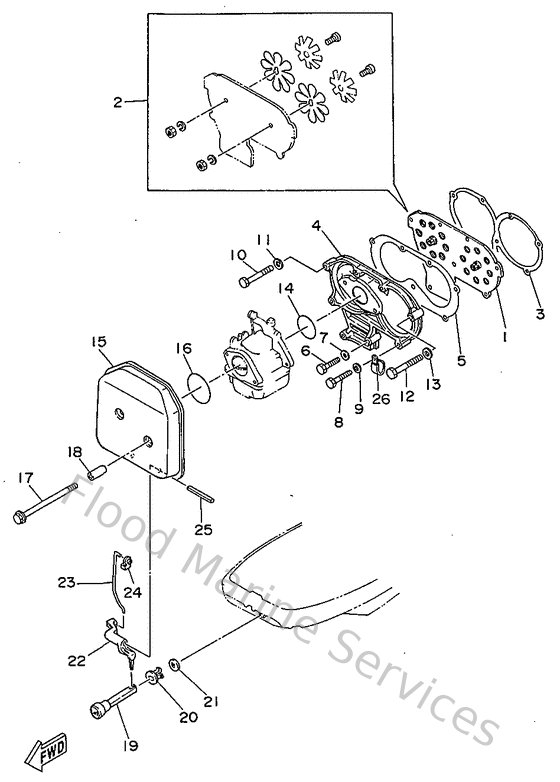

Diagram: Intake
Parts List
Reference
Description
Price
1
61N136100000
Reed valve assembly
Loading…
↗
2
689W00040000
Reed set
Loading…
↗
3
64813621A100
Gasket, valve seat
Loading…
↗
4
61N136410094
Manifold, intake 1
Loading…
↗
5
64813645A000
Gasket, manifold 1
Loading…
↗
6
9010106M2700
Bolt
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
970140603500
Bolt(3rv)
Loading…
↗
10
970130604500
Bolt, hexagon
Loading…
↗
12
970130605000
Bolt, hexagon
Loading…
↗
14
61N141980000
Gasket
Loading…
↗
15
61N144400000
Silencer assembly, intake
Loading…
↗
16
932104065900
O-ring(36y)
Loading…
↗
17
9011906M9400
Bolt, with washer
Loading…
↗
18
9038706M2600
Collar(61n)
Loading…
↗
19
682412710100
Knob, choke
Loading…
↗
20
689412730000
Grommet
Loading…
↗
21
6J8412740000
Grommet 2
Loading…
↗
22
689412520100
Lever, choke 1
Loading…
↗
23
61N412560000
Rod, choke 1
Loading…
↗
24
661412620200
Joint, choke lever
Loading…
↗
25
916904004800
Pin, spring (689)
Loading…
↗
26
9046508M5100
Clamp
Loading…
↗
