30GMH (2001)
Intake

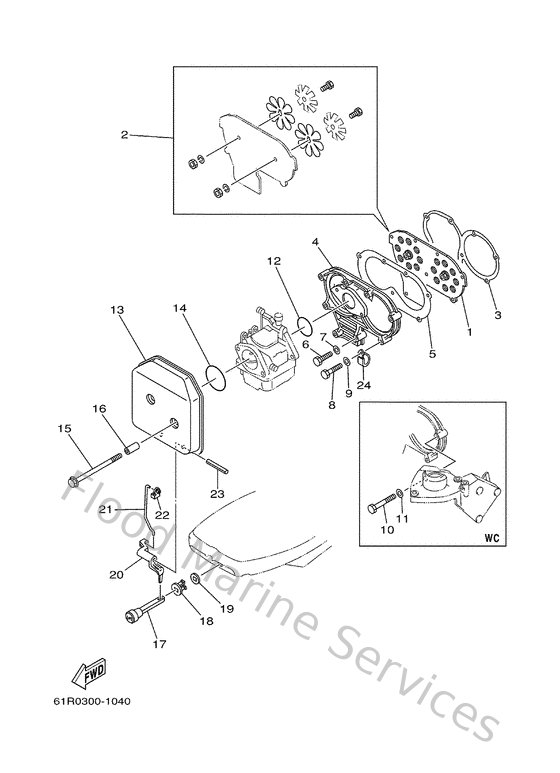

Diagram: Intake
Parts List
Reference
Description
Price
1
689136100100
Reed valve assembly
Loading…
↗
2
689W00040000
Reed set
Loading…
↗
3
64813621A100
Gasket, valve seat
Loading…
↗
4
61N136410194
Manifold 1
Loading…
↗
5
64813645A000
Gasket, manifold 1
Loading…
↗
6
970130602500
Bolt(62y)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
970130603500
Bolt(3rv)
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
12
61N141980000
Gasket
Loading…
↗
13
61N144400000
Silencer assembly, intake
Loading…
↗
14
932104065900
O-ring(36y)
Loading…
↗
15
9011906M9400
Bolt, with washer
Loading…
↗
16
9038706M2600
Collar(61n)
Loading…
↗
17
682412710000
Knob, choke
Loading…
↗
18
689412730000
Grommet
Loading…
↗
19
6J8412740000
Grommet 2
Loading…
↗
20
689412520100
Lever, choke 1
Loading…
↗
21
61N412560000
Rod, choke 1
Loading…
↗
22
661412620200
Joint, choke lever
Loading…
↗
23
916904004800
Pin, spring (689)
Loading…
↗
24
9046506M8800
Clamp
Loading…
↗
