Yamaha Outboard Parts - Intake - 40QMH (1992) | Flood Marine

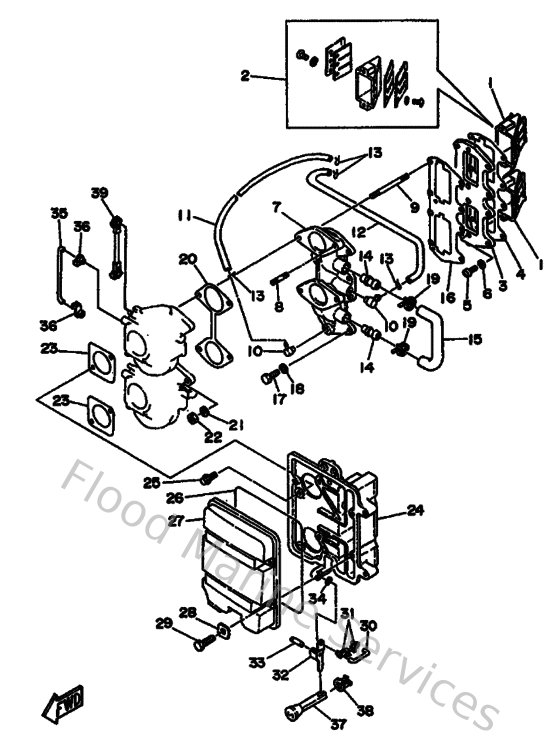

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6A0136100000
Reed Valve Assembly
Loading…

↗
3
676136420094
Manifold 2
Loading…

↗
4
67613646A000
Gasket,intake manifold 2
Loading…

↗
5
985800501600
Screw, pan head(6b0)
Loading…

↗
6
929900510000
Ybs67-5 washer, spring
Loading…

↗
8
9011606M3000
Bolt, stud(6e5)
Loading…

↗
9
9011606M1500
Bolt, stud (6e9)
Loading…

↗
10
650113700000
Check valve assembly
Loading…

↗
11
9044507M9000
Hose (l390)
Loading…

↗
12
9044507M4400
Hose (l390)
Loading…

↗
13
904670601600
Clip (655)
Loading…

↗
15
6E9243210000
Pipe 10
Loading…

↗
17
973130602500
Bolt
Loading…

↗
18
929900660000
Washer, plain (646)
Loading…

↗
19
80L263970000
Band
Loading…

↗
20
6E914198A000
Gasket
Loading…

↗
22
953800660000
Nut(661)
Loading…

↗
23
6E914483A000
Joint
Loading…

↗
24
6E9144177094
Cover 1
Loading…

↗
25
9010506M1400
Bolt (6e0)
Loading…

↗
26
6E9144760000
Seal
Loading…

↗
29
973950601600
Bolt, hexagon deep recess
Loading…

↗
31
661412620200
Joint, choke lever
Loading…

↗
32
6E9412520000
Lever, Choke 1
Loading…

↗
33
916904001600
Pin, spring (648)
Loading…

↗
34
902060500500
Washer, wave(656)
Loading…

↗
35
663412570200
Rod, choke 2
Loading…

↗
37
682412710000
Knob, choke
Loading…

↗
38
689412730000
Grommet
Loading…

↗
39
697412170100
Rod, accel. lever
Loading…

↗
