50DEMTO (1986)
Intake

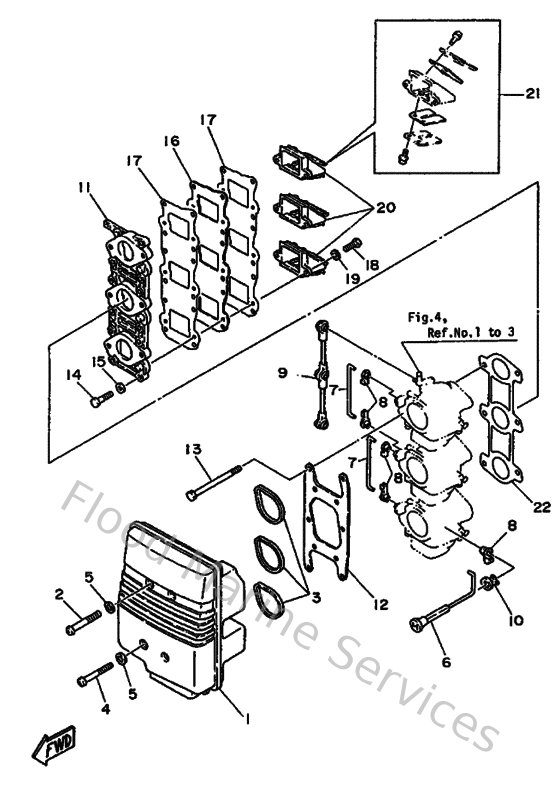

Diagram: Intake
Parts List
Reference
Description
Price
1
6H4144310000
Silencer, intake 1
Loading…
↗
2
978030604000
Screw pan head
Loading…
↗
3
6H3144570000
Seal
Loading…
↗
4
978030605500
Screw, panhed (gc2)
Loading…
↗
5
9020906M0900
Washer
Loading…
↗
6
6H4412710000
Knob, Choke
Loading…
↗
7
6H4412570000
Rod, choke link 2
Loading…
↗
8
661412620200
Joint, choke lever
Loading…
↗
9
6H4412170000
Rod, accel. lever
Loading…
↗
10
689412730000
Grommet
Loading…
↗
12
6H4144060000
Hinge
Loading…
↗
13
970950609500
Bolt, hexagon deep recess
Loading…
↗
14
973130602500
Bolt
Loading…
↗
15
929030660000
Washer, plain (646)
Loading…
↗
16
6H4136240094
Plate, reed valve
Loading…
↗
17
6H413621A100
Gasket, valve seat
Loading…
↗
18
978030501400
Screw, pan head(6b0)
Loading…
↗
19
929030560000
Washer, plain (646)
Loading…
↗
20
6H5136100000
Reed valve assembly
Loading…
↗
21
6H4W00040000
Reed set
Loading…
↗
22
6H4141980000
Gasket, plate
Loading…
↗
