5CMH (1985)
Intake

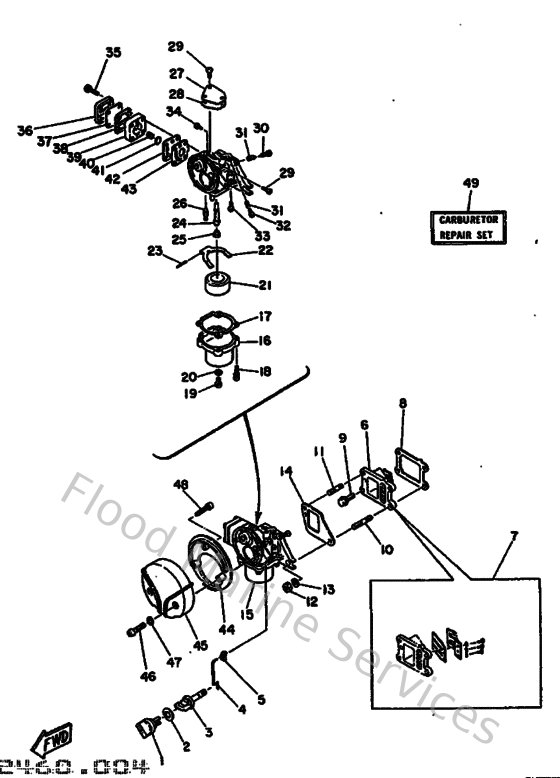

Diagram: Intake
Parts List
Reference
Description
Price
1
6E0412710000
Knob, choke
Loading…
↗
2
9020212M1600
Washer, plate (6e0)
Loading…
↗
3
6E0412720000
Knob, choke 2
Loading…
↗
4
6E0412560000
Rod, choke link
Loading…
↗
5
661412620200
Joint, choke lever
Loading…
↗
6
6E0136100000
Reed valve assembly
Loading…
↗
7
6E0W00040000
Reed set
Loading…
↗
8
6E013621A200
Gasket, valve seat
Loading…
↗
9
9010506M1400
Bolt (6e0)
Loading…
↗
10
956210632500
Bolt, stud(6e0)
Loading…
↗
11
9011606M0800
Bolt, stud (689)
Loading…
↗
12
953030670000
Nut
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
6E0141980000
Gasket
Loading…
↗
15
6E3143010100
Carburetor assembly 1
Loading…
↗
16
6E0143810000
Body, Float Chamber
Loading…
↗
17
654143840000
Gasket, float chamber
Loading…
↗
18
985800401600
Screw, panhead (796)
Loading…
↗
19
677143830000
Screw, drain
Loading…
↗
21
647143850000
Float
Loading…
↗
22
6E0143870000
Arm, Diaphragm
Loading…
↗
23
647143860000
Pin, float
Loading…
↗
24
6E0143410100
Nozzle, main
Loading…
↗
25
648143434300
Jet, main (#86)
Loading…
↗
26
6E0143920000
Valve, needle
Loading…
↗
27
6E0141570000
Cover, plate
Loading…
↗
28
6E0142270000
Gasket
Loading…
↗
29
978030400700
Screw, pan head (713)
Loading…
↗
30
647143230000
Screw, air adjusting
Loading…
↗
31
646142120100
Spring, pilot adjusting
Loading…
↗
32
648143210000
Screw, pan head(ga5)
Loading…
↗
33
648143422300
Jet, pilot (#46)
Loading…
↗
34
647143260000
Screw, guide
Loading…
↗
35
985030402000
Screw, pan head (7h3)
Loading…
↗
36
6E0244130000
Cover, pump
Loading…
↗
37
6E0244710000
Diaphragm
Loading…
↗
38
6E0244350000
Gasket, cover pump
Loading…
↗
39
6E0244120000
Body, pump
Loading…
↗
40
6E0244230000
Spring
Loading…
↗
41
6E0143460000
Plate
Loading…
↗
42
6E0244110000
Diaphragm
Loading…
↗
43
6E0244340000
Gasket, body pump
Loading…
↗
44
6E0144170000
Cover 1
Loading…
↗
45
6E0144180000
Cover 2
Loading…
↗
46
985800552500
Screw, panhead (a93)
Loading…
↗
47
929030560000
Washer, plain (646)
Loading…
↗
48
977804072000
Ybs81-420 screw,0.head tapping
Loading…
↗
49
6E0W00930000
Carburetor repair set
Loading…
↗
