70BETO (1986)
Intake

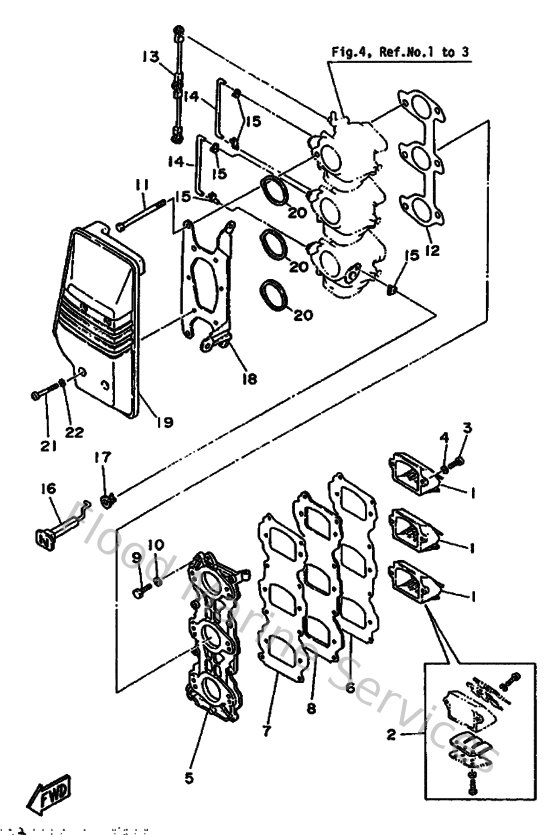

Diagram: Intake
Parts List
Reference
Description
Price
1
6H2136100000
Reed valve assembly
Loading…
↗
3
978030502000
Screw, pan head (e22)
Loading…
↗
4
929900510000
Ybs67-5 washer, spring
Loading…
↗
6
6H3136210000
Gasket, valve seat
Loading…
↗
7
6H313622A100
Gasket, valve seat
Loading…
↗
8
6H3136240094
Plate, reed valve
Loading…
↗
9
973130602500
Bolt
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
970950609500
Bolt, hexagon deep recess
Loading…
↗
12
6H3141980100
Gasket
Loading…
↗
13
6H3412170000
Rod, accel lever
Loading…
↗
14
6H3412570000
Rod, choke link 2
Loading…
↗
15
661412620200
Joint, choke lever
Loading…
↗
16
6H3412710000
Knob, choke
Loading…
↗
17
689412730000
Grommet
Loading…
↗
18
6H3144131100
Stay
Loading…
↗
19
6H3144400000
Silencer assembly, intake
Loading…
↗
20
6H3144570000
Seal
Loading…
↗
21
978030604500
Screw pan head
Loading…
↗
22
9020906M0500
Washer (688)
Loading…
↗
