70BETO (1990)
Intake

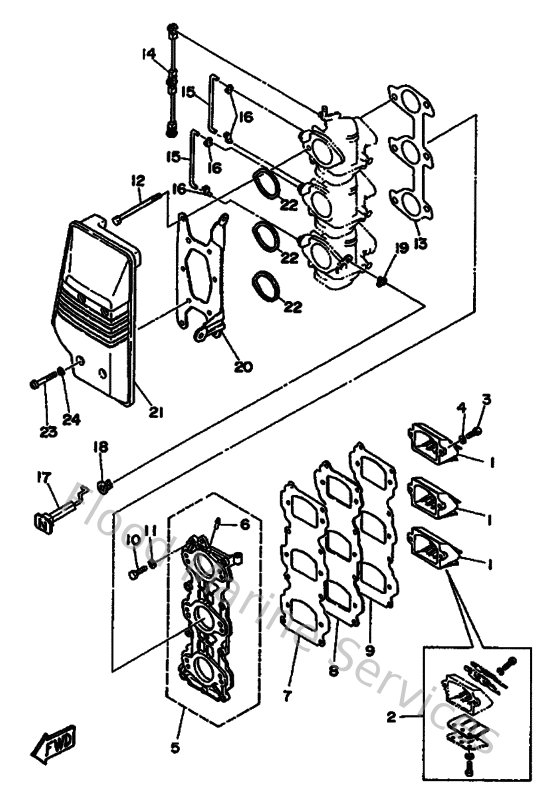

Diagram: Intake
Parts List
Reference
Description
Price
1
6H3136100000
Reed valve assembly
Loading…
↗
3
985800502000
Screw, pan head (e22)
Loading…
↗
4
929900510000
Ybs67-5 washer, spring
Loading…
↗
6
6H1144850000
Pipe, joint
Loading…
↗
7
6H3136210000
Gasket, valve seat
Loading…
↗
8
6H3136240000
Plate, reed valve
Loading…
↗
9
6H3136220000
Gasket, valve seat
Loading…
↗
10
973130602500
Bolt
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
973130609500
Bolt, hexagon deep recess
Loading…
↗
13
6H314198A100
Gasket
Loading…
↗
14
6H3412170000
Rod, accel lever
Loading…
↗
15
6H3412570000
Rod, choke link 2
Loading…
↗
16
661412620200
Joint, choke lever
Loading…
↗
18
689412730000
Grommet
Loading…
↗
20
6H3144131100
Stay
Loading…
↗
21
6H3144400000
Silencer assembly, intake
Loading…
↗
22
6H3144570100
Seal
Loading…
↗
23
978950604500
Screw, pan head(6b0)
Loading…
↗
24
9020906M0500
Washer (688)
Loading…
↗
