9.9DMH (1985)
Intake

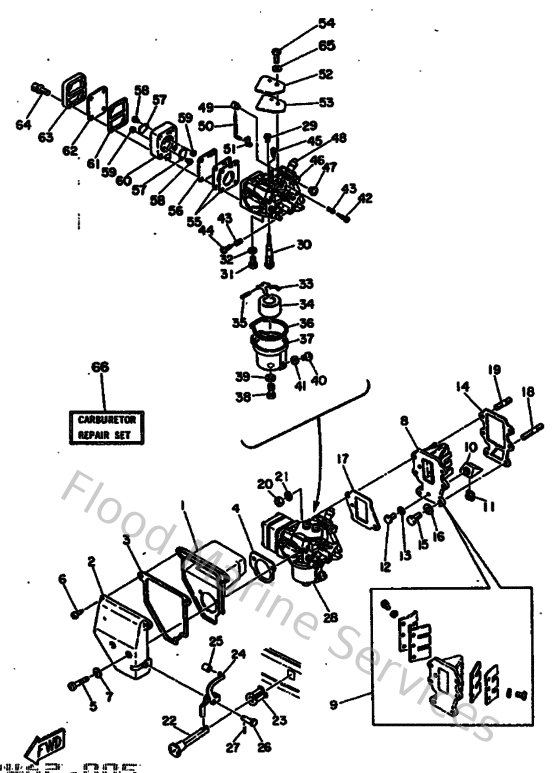

Diagram: Intake
Parts List
Reference
Description
Price
1
682144170200
Cover 1
Loading…
↗
2
682144180100
Cover 2
Loading…
↗
3
682144160000
Gasket, Air Cleaner
Loading…
↗
4
682144830000
Gasket
Loading…
↗
5
985800553000
Ybs86-530 screw,panhead
Loading…
↗
6
977805051400
Screw, panhead tapping (682)
Loading…
↗
7
929030560000
Washer, plain (646)
Loading…
↗
8
6E8136100100
Reed valve assembly
Loading…
↗
9
682W00040000
Reed set
Loading…
↗
10
6E7136250000
Spacer, Reed Valve
Loading…
↗
11
6E7135880000
Nut
Loading…
↗
12
970130601200
Bolt(gh1)
Loading…
↗
13
929030660000
Washer, plain (646)
Loading…
↗
14
682136210000
Gasket, valve seat
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
677141980000
Gasket
Loading…
↗
18
9011606M0400
Bolt, stud (682)
Loading…
↗
19
901160613000
Bolt, stud
Loading…
↗
20
953030670000
Nut
Loading…
↗
22
682412710100
Knob, choke
Loading…
↗
23
682412730000
Grommet
Loading…
↗
24
682412520100
Lever, Choke 1
Loading…
↗
25
682412670000
Bushing, Joint
Loading…
↗
26
6E8143010500
Carbretor assembly
Loading…
↗
27
904681000500
Pin, hair 6264123500
Loading…
↗
29
6E7143422900
Jet, Pilot (# 58)
Loading…
↗
30
6E8143410000
Nozzle Main
Loading…
↗
31
61J143900000
Valve seat assembly
Loading…
↗
32
367141950000
Washer, valve seat
Loading…
↗
33
626143870000
Arm, float
Loading…
↗
34
647143850000
Float
Loading…
↗
35
647143861000
Pin, float
Loading…
↗
36
677143840000
Gasket, float chamber
Loading…
↗
38
677143435200
Jet Main (#104)
Loading…
↗
39
1J2143980000
Packing
Loading…
↗
40
985800400600
Screw, pan head (7h3)
Loading…
↗
41
655143980000
Gasket
Loading…
↗
42
648143230000
Screw, air adjusting
Loading…
↗
43
646142120100
Spring, pilot adjusting
Loading…
↗
44
985800401400
Screw, pan head(ga5)
Loading…
↗
45
647143260000
Screw, guide
Loading…
↗
46
682412100000
Axle arm assembly (carb.)
Loading…
↗
47
677143270000
Screw
Loading…
↗
48
682412910000
Bushing
Loading…
↗
49
677412260000
End, throttle lever (carb)
Loading…
↗
51
661412620200
Joint, choke lever
Loading…
↗
53
6E7142270000
Packing
Loading…
↗
54
985030400800
Screw, pan head (713)
Loading…
↗
55
677244340200
Gasket, pump 1
Loading…
↗
56
677244110200
Diaphragm
Loading…
↗
57
6A0244210000
Valve, check
Loading…
↗
58
9014703M0100
Screw, pan head
Loading…
↗
59
988130310000
Nut
Loading…
↗
60
682244120100
Body, pump
Loading…
↗
61
677244350100
Gasket, pump 2 (carb.)
Loading…
↗
62
677244710100
Diaphragm (carb.)
Loading…
↗
63
677244130100
Cover (carb.)
Loading…
↗
64
677244440900
Screw
Loading…
↗
65
929030410000
Ybs67-4 washer, spring
Loading…
↗
66
677W00930000
Carburetor repair set
Loading…
↗
