9.9DMH (1989)
Intake

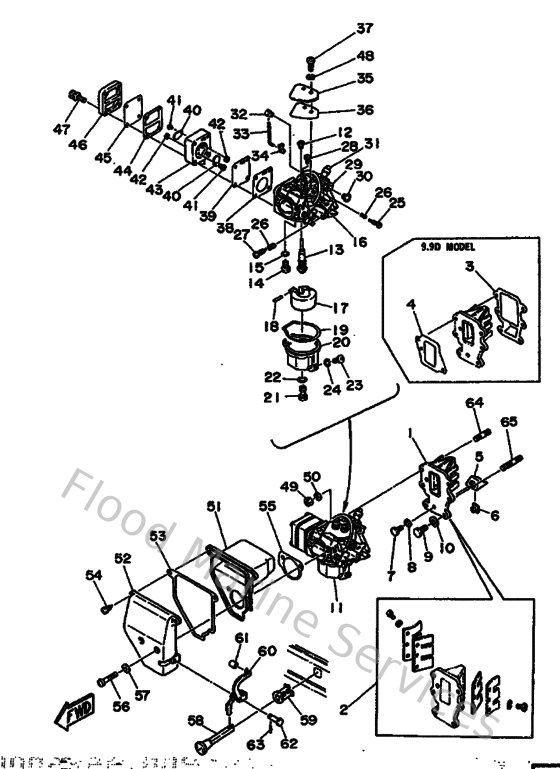

Diagram: Intake
Parts List
Reference
Description
Price
1
6E7136107100
Reed Valve Assembly
Loading…
↗
2
682W00040000
Reed set
Loading…
↗
3
682136210000
Gasket, valve seat
Loading…
↗
4
67714198A100
Gasket
Loading…
↗
7
973130601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
973130601600
Bolt, hexagon deep recess
Loading…
↗
11
6E8143010500
Carbretor assembly
Loading…
↗
12
6E7143422600
Jet, Pilot #52 (#52)
Loading…
↗
13
6E8143410000
Nozzle Main
Loading…
↗
14
6E8143901200
Needle valve assembly
Loading…
↗
15
367141950000
Washer, valve seat
Loading…
↗
16
367143960000
Pipe, over flow
Loading…
↗
17
6E7143850000
Float
Loading…
↗
18
647143861000
Pin, float
Loading…
↗
20
6E7143810000
Body, float chamber
Loading…
↗
21
677143435200
Jet Main (#104)
Loading…
↗
22
1J2143980000
Packing
Loading…
↗
23
985800400600
Screw, pan head (7h3)
Loading…
↗
24
655143980000
Gasket
Loading…
↗
25
647143230000
Screw, air adjusting
Loading…
↗
26
646142120100
Spring, pilot adjusting
Loading…
↗
27
648143210000
Screw, pan head(ga5)
Loading…
↗
28
647143260000
Screw, guide
Loading…
↗
29
682412100000
Axle arm assembly (carb.)
Loading…
↗
30
677143270000
Screw
Loading…
↗
31
682412910000
Bushing
Loading…
↗
32
677412260000
End, throttle lever (carb)
Loading…
↗
34
661412620200
Joint, choke lever
Loading…
↗
36
6E7142270000
Packing
Loading…
↗
37
985800400800
Screw, pan head (713)
Loading…
↗
39
677244110200
Diaphragm
Loading…
↗
40
62Y244210100
Valve, check
Loading…
↗
41
9014703M0100
Screw, pan head
Loading…
↗
42
988130310000
Nut
Loading…
↗
43
682244120000
Body, pump
Loading…
↗
44
677244350200
Gasket, body 2
Loading…
↗
45
677244710100
Diaphragm (carb.)
Loading…
↗
46
677244130100
Cover (carb.)
Loading…
↗
47
677244440000
Screw
Loading…
↗
48
929030410000
Ybs67-4 washer, spring
Loading…
↗
49
953800670000
Nut
Loading…
↗
51
682144170200
Cover 1
Loading…
↗
52
682144180100
Cover 2
Loading…
↗
53
68214416A000
Gasket, Air Cleaner
Loading…
↗
54
977805051400
Screw, panhead tapping (682)
Loading…
↗
55
682144830000
Gasket
Loading…
↗
56
985800553000
Ybs86-530 screw,panhead
Loading…
↗
57
929900560000
Washer, plain (646)
Loading…
↗
58
682412710000
Knob, choke
Loading…
↗
59
682412730000
Grommet
Loading…
↗
60
682412520100
Lever, Choke 1
Loading…
↗
61
682412670000
Bushing, Joint
Loading…
↗
62
682412630000
Pin, Chokelever
Loading…
↗
63
904681000500
Pin, hair 6264123500
Loading…
↗
64
901160613000
Bolt, stud
Loading…
↗
65
9011606M0400
Bolt, stud (682)
Loading…
↗
