9.9FMH (1995)
Intake

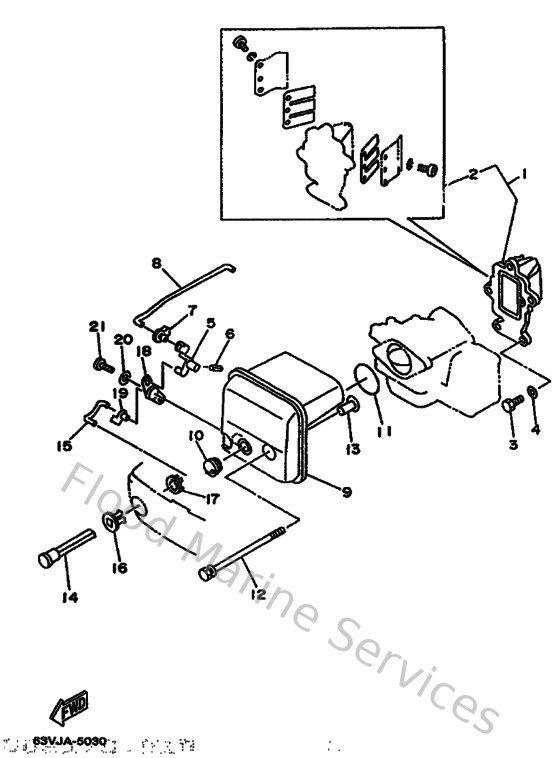

Diagram: Intake
Parts List
Reference
Description
Price
1
63V136101000
Reed valve assembly
Loading…
↗
2
682W00040000
Reed set
Loading…
↗
3
970950602000
Bolt(7u8)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
63V412530000
Lever, choke
Loading…
↗
6
916902001000
Pin, spring
Loading…
↗
7
63V412620000
Joint, choke lever
Loading…
↗
8
63V412570000
Rod, choke 2
Loading…
↗
9
63V144400000
Silencer assembly, intake
Loading…
↗
10
9048012M2500
Grommet (6e9)
Loading…
↗
11
9321035M8600
O-ring(6l2)
Loading…
↗
12
9011906M9400
Bolt, with washer
Loading…
↗
13
9038706M1500
Collar(6g8)
Loading…
↗
14
6H4412710100
Knob, choke
Loading…
↗
15
63V412560000
Rod, choke 1
Loading…
↗
16
689412730000
Grommet
Loading…
↗
17
6J8412740000
Grommet 2
Loading…
↗
18
63V412520000
Lever, choke 1
Loading…
↗
19
661412620200
Joint, choke lever
Loading…
↗
20
9020105M0900
Washer, plate(63v)
Loading…
↗
21
9016405M0300
Screw, tapping(6g8)
Loading…
↗
