F100AET (2000)
Intake

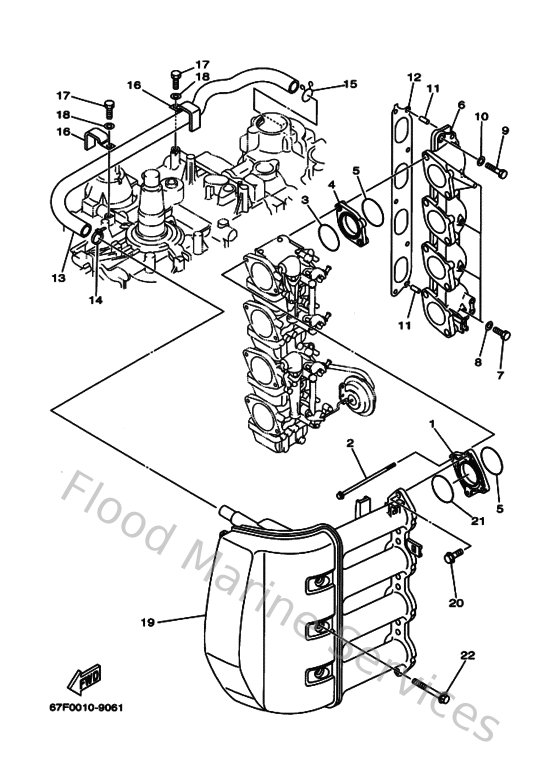

Diagram: Intake
Parts List
Reference
Description
Price
1
67F142430000
Plate
Loading…
↗
2
67F142160000
Screw
Loading…
↗
3
67F142390000
Seal
Loading…
↗
4
67F142710000
Insulator
Loading…
↗
5
9321040M1000
O-ring (682)
Loading…
↗
6
67F136410094
Manifold 1
Loading…
↗
7
970850601000
Bolt
Loading…
↗
8
904300601400
Gasket 256113960000
Loading…
↗
9
970750803500
Bolt(70w)
Loading…
↗
10
929950860000
Washer, plain (663)
Loading…
↗
11
916905001400
Pin, spring (647)
Loading…
↗
12
67F136450000
Gasket, manifold 1
Loading…
↗
13
67F153730000
Pipe, breather
Loading…
↗
14
9046511M1000
Clamp
Loading…
↗
15
9046720M1500
Clip
Loading…
↗
16
9046512M0300
Clamp, cord (688)
Loading…
↗
17
970800601200
Bolt(gh1)
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
67F144400000
Silencer assembly, intake
Loading…
↗
20
9011906M8200
Bolt, with washer
Loading…
↗
21
9321041MJ200
O-ring
Loading…
↗
22
9011908M5900
Bolt, with washer
Loading…
↗
