Yamaha Outboard Parts - Intake - F4AMH (1998) | Flood Marine

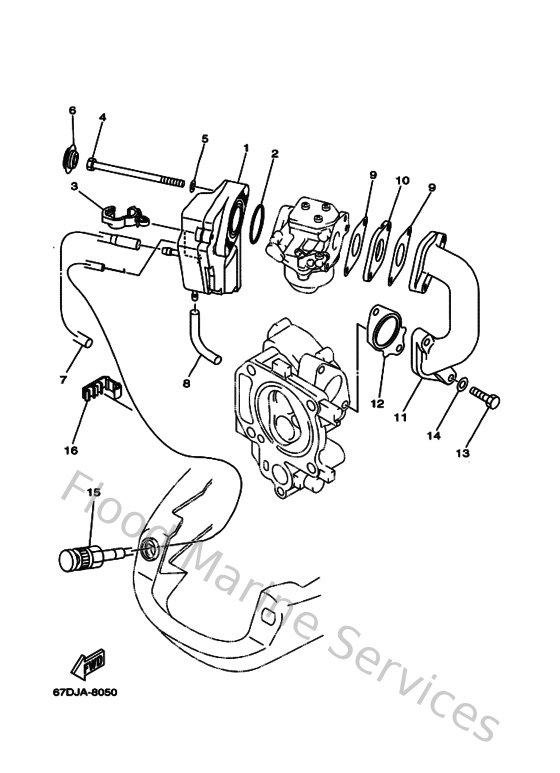

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
67D144400000
Silencer assembly, Intake
Loading…

↗
2
932103111400
O-ring
Loading…

↗
3
904641324900
Clamp
Loading…

↗
5
929900660000
Washer, plain (646)
Loading…

↗
6
9048018M7400
Grommet
Loading…

↗
7
9044509M4100
Hose (L175)
Loading…

↗
8
9044507M2800
Hose (l200)
Loading…

↗
9
67D13646A000
Gasket Int. Manifold
Loading…

↗
10
67D136470000
Gasket, Manifold 3
Loading…

↗
11
68DE36410094
Manifold, Intake 1
Loading…

↗
12
67D13645A000
Gasket, Manifold 1
Loading…

↗
13
9010106M2700
Bolt
Loading…

↗
14
929950660000
Washer, plain (646)
Loading…

↗
15
67D263300000
Wire starter
Loading…

↗
