F50AE (2001)
Intake

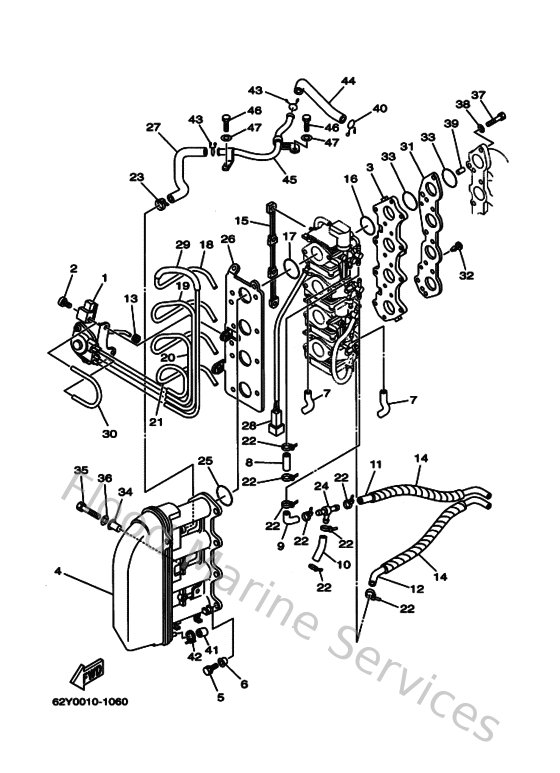

Diagram: Intake
Parts List
Reference
Description
Price
1
62Y143693000
Diaphragm assembly 2
Loading…
↗
2
650143270100
Screw
Loading…
↗
3
62Y135863000
Joint, carburetor 1
Loading…
↗
4
62Y144400000
Silencer assembly, intake
Loading…
↗
5
975950659000
Bolt(62y)
Loading…
↗
6
9038706M7000
Collar (6h5)
Loading…
↗
7
62Y243120000
Pipe, fuel 1
Loading…
↗
8
62Y243133000
Pipe 3
Loading…
↗
9
62Y243134000
Pipe 3
Loading…
↗
10
62Y243135000
Pipe 3
Loading…
↗
11
62Y243136000
Pipe 3
Loading…
↗
12
62Y243137000
Pipe 3
Loading…
↗
13
62Y412623000
Joint, choke lever
Loading…
↗
14
62Y243138000
Pipe 3
Loading…
↗
15
64J145850000
Rod, choke
Loading…
↗
16
9321030MH400
O-ring(62y)
Loading…
↗
17
9321035M8600
O-ring(6l2)
Loading…
↗
18
64J143490000
Pipe
Loading…
↗
19
64J143491000
Pipe
Loading…
↗
20
64J143492000
Pipe
Loading…
↗
21
64J143493000
Pipe
Loading…
↗
22
9046511M1000
Clamp
Loading…
↗
23
9046513M3600
Clamp(6h4)
Loading…
↗
24
62Y243780000
Pipe, joint 4
Loading…
↗
25
9321038MH300
O-ring(62y)
Loading…
↗
26
62Y142913000
Bracket 1
Loading…
↗
27
62Y1532B0000
Pipe, breather
Loading…
↗
28
62Y825090000
Wire, sub lead
Loading…
↗
29
64J143494000
Pipe
Loading…
↗
30
64J143495000
Pipe
Loading…
↗
31
62Y142710000
Insulator
Loading…
↗
32
9033804M1700
Plug(62y)
Loading…
↗
34
9038706M1500
Collar(6g8)
Loading…
↗
35
970950603000
Bolt(jf7)
Loading…
↗
36
929950660000
Washer, plain (646)
Loading…
↗
37
9010106M2700
Bolt
Loading…
↗
39
9360816M1600
Pin, dowel(6t4)
Loading…
↗
40
9046715M1400
Clip(62y)
Loading…
↗
41
62Y134480000
Cap
Loading…
↗
42
904651009800
Clamp
Loading…
↗
44
62Y1531A0000
Hose, breather 1
Loading…
↗
45
62Y153731000
Pipe, breather
Loading…
↗
46
970950601600
Bolt, hexagon deep recess
Loading…
↗
