F6AMH (2000)
Intake

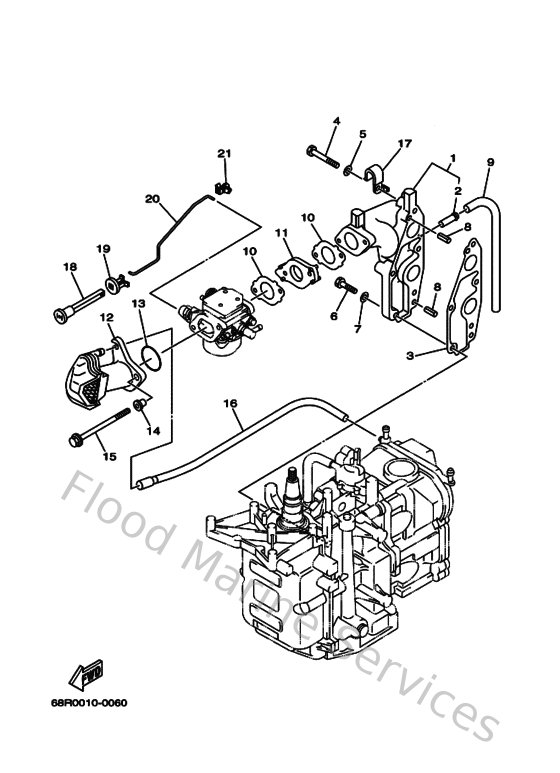

Diagram: Intake
Parts List
Reference
Description
Price
1
68T13641001S
Manifold 1
Loading…
↗
2
650243780000
Pipe, joint 2
Loading…
↗
3
68T136450000
Gasket, manifold 1
Loading…
↗
4
970130603500
Bolt(3rv)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
970130602500
Bolt(62y)
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
916905001400
Pin, spring (647)
Loading…
↗
9
90445090F600
Hose (l1500)
Loading…
↗
10
68T13646A000
Gasket, manifold 2
Loading…
↗
11
68T142710000
Insulator
Loading…
↗
12
68T144400000
Silencer assembly, intake
Loading…
↗
13
9321031MJ500
O-ring
Loading…
↗
14
9038706M7000
Collar (6h5)
Loading…
↗
15
901050618800
Bolt, flange
Loading…
↗
16
68T124830000
Pipe 3
Loading…
↗
17
9046508M9900
Clamp
Loading…
↗
18
6H4412710100
Knob, choke
Loading…
↗
19
689412730000
Grommet
Loading…
↗
20
68T412560000
Rod, choke 1
Loading…
↗
21
6J8412620000
Joint, choke lever
Loading…
↗
