Yamaha Outboard Parts - Intake - F9.9CMH (1998) | Flood Marine

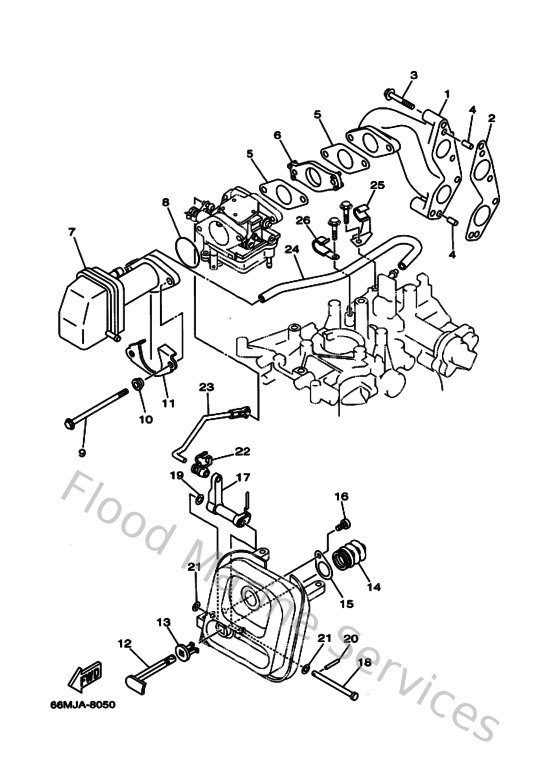

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
66M136410094
Manifold 1
Loading…

↗
2
66M136450000
Gasket, manifold 1
Loading…

↗
3
975950654000
Bolt, hexagon w/w deep recess
Loading…

↗
4
936061201900
Pin, dowel (614)
Loading…

↗
5
66M136460000
Gasket, manifold 2
Loading…

↗
6
66M142710000
Insulator
Loading…

↗
7
66M144400000
Silencer assembly, intake
Loading…

↗
8
9321035M8600
O-ring(6l2)
Loading…

↗
9
9011906M7600
Bolt, with washer
Loading…

↗
10
9038706M7900
Collar
Loading…

↗
11
66M144770000
Plate
Loading…

↗
12
66M412710000
Knob, choke
Loading…

↗
13
689412730000
Grommet
Loading…

↗
14
66M412920000
Bush 2
Loading…

↗
15
66M412980000
Washer 2
Loading…

↗
16
977805051000
Screw, tapping(6u1)
Loading…

↗
17
66M412520000
Lever, choke 1
Loading…

↗
18
9024005M2000
Pin, clevis
Loading…

↗
19
902060500500
Washer, wave(656)
Loading…

↗
20
916902001600
Pin, spring (677)
Loading…

↗
21
902020508800
Washer, plate (666)
Loading…

↗
22
6R5412370000
Joint, link
Loading…

↗
23
66M412560000
Rod, choke 1
Loading…

↗
24
66M153730000
Pipe, breather
Loading…

↗
25
9046508M7100
Clamp
Loading…

↗
26
9046508M7200
Clamp
Loading…

↗
