Yamaha Outboard Parts - Intake - FL115AET (2001) | Flood Marine

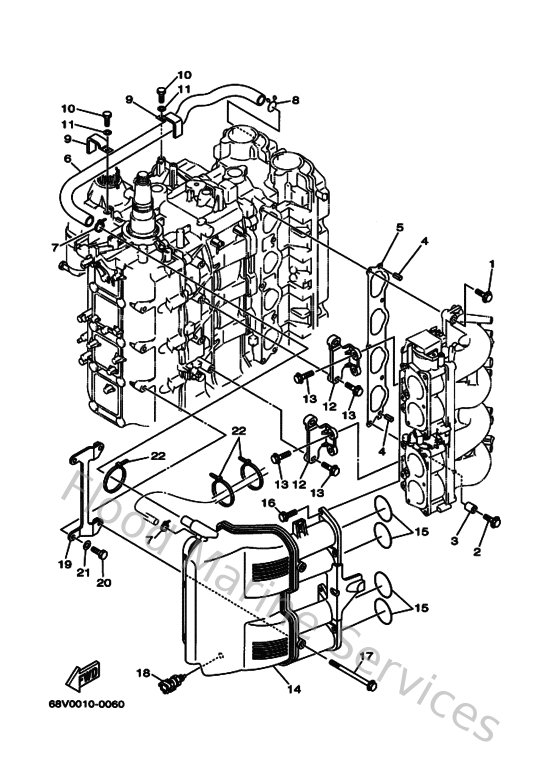

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
975750854000
Bolt, hexagon w/w deep recess
Loading…

↗
2
9011908M6800
Bolt, with washer
Loading…

↗
3
9038708M3200
Collar
Loading…

↗
4
916905001400
Pin, spring (647)
Loading…

↗
5
68V136450000
Gasket, manifold 1
Loading…

↗
6
67F153730000
Pipe, breather
Loading…

↗
7
904651009800
Clamp
Loading…

↗
8
9046720M1500
Clip
Loading…

↗
9
9046512M0300
Clamp, cord (688)
Loading…

↗
10
970950601200
Bolt(gh1)
Loading…

↗
11
929950660000
Washer, plain (646)
Loading…

↗
12
68V142910000
Bracket 1
Loading…

↗
13
9011906M4900
Bolt, with washer
Loading…

↗
14
68V144400000
Silencer assembly Intake
Loading…

↗
15
9321048MJ900
O-ring
Loading…

↗
16
9011906M8200
Bolt, with washer
Loading…

↗
17
9011906ME100
Bolt, with washer
Loading…

↗
18
65L858860000
Thermosensor
Loading…

↗
19
68V142920000
Bracket 2
Loading…

↗
20
970950802000
Bolt, hexagon
Loading…

↗
21
929950860000
Washer, plain (663)
Loading…

↗
22
9046513M1800
Clamp
Loading…

↗
