FT9.9AMH (1993)
Intake

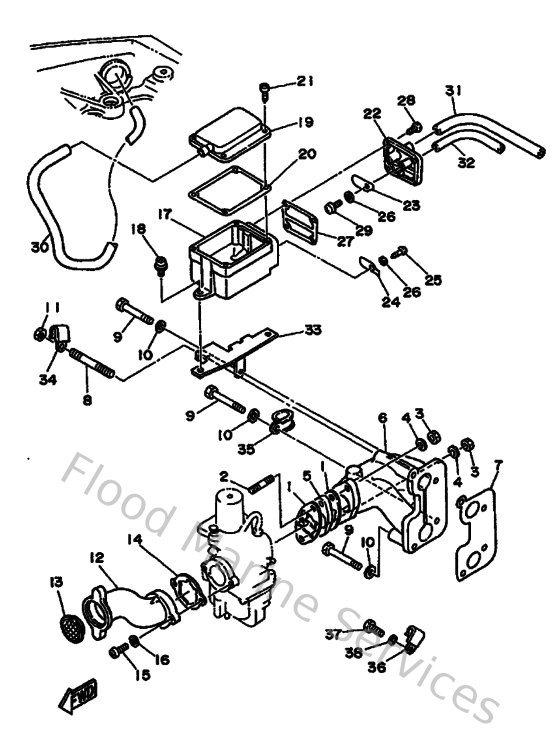

Diagram: Intake
Parts List
Reference
Description
Price
2
9011606M2600
Bolt, Stud
Loading…
↗
3
953800670000
Nut
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
6
6G8136410194
Manifold 1
Loading…
↗
7
6G8136450000
Gasket, intake manifold
Loading…
↗
8
9011606M1500
Bolt, stud (6e9)
Loading…
↗
9
973950604500
Bolt, hexagon
Loading…
↗
11
9538R0670000
Nut
Loading…
↗
12
6G8144780000
Louver
Loading…
↗
15
985800501600
Screw, pan head(6b0)
Loading…
↗
16
929900560000
Washer, plain (646)
Loading…
↗
17
6G8153580000
Separator, Oil
Loading…
↗
18
9015906M0500
Screw, With Washer
Loading…
↗
19
6G8153680094
Separator, Oil
Loading…
↗
20
6G8153690000
Gasket
Loading…
↗
21
977804011200
Screw, pan head tapping
Loading…
↗
22
6G8153710094
Breather
Loading…
↗
23
6G8153460000
Breather 1
Loading…
↗
24
6G8153470000
Breather 2
Loading…
↗
26
929900420000
Ybs66-4 washer, plain
Loading…
↗
27
6G8153740000
Gasket, breather
Loading…
↗
29
985800401000
Screw, pan head (e56)
Loading…
↗
30
6G8153930000
Pipe, Breather 2
Loading…
↗
31
9044511M5200
Hose (l198)
Loading…
↗
32
904451129300
Hose (l198)
Loading…
↗
33
6G8153760000
Holder, guide
Loading…
↗
34
904650802800
Clamp (1e6)
Loading…
↗
35
9046106M0100
Clamp (6a4)
Loading…
↗
37
970130601200
Bolt(gh1)
Loading…
↗
38
929900060000
Washer
