Yamaha Outboard Parts - Intake - L130BETOL (2000) | Flood Marine

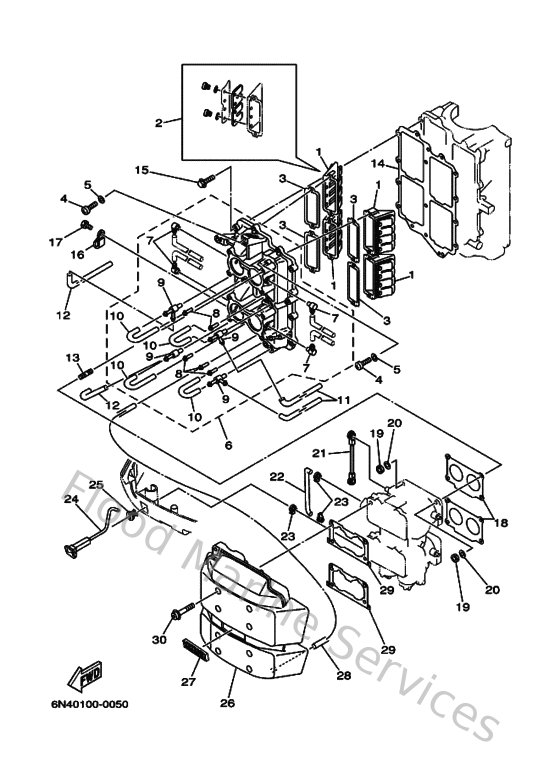

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6E5136100000
Reed valve assembly
Loading…

↗
2
6E5W00040000
Reed set
Loading…

↗
3
6E513621A100
Gasket, valve seat
Loading…

↗
4
978800502500
Screw, panhead (a93)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
6E513641111S
Manifold 1
Loading…

↗
7
6E5135520000
Nozzle
Loading…

↗
8
624144850000
Pipe, joint
Loading…

↗
9
6E5113700000
Check valve assembly
Loading…

↗
10
9044507M2800
Hose (l200)
Loading…

↗
11
9044507M2400
Hose (l390)
Loading…

↗
12
9044507M4600
Hose (l390)
Loading…

↗
13
9011606M3000
Bolt, stud(6e5)
Loading…

↗
14
6E513645A100
Gasket, manifold 1
Loading…

↗
15
9011906MA300
Bolt, with washer
Loading…

↗
16
9046506M8600
Clamp
Loading…

↗
17
970130601200
Bolt(gh1)
Loading…

↗
18
6E514198A200
Gasket
Loading…

↗
19
953800660000
Nut(661)
Loading…

↗
20
929950610000
Washer(6a1)
Loading…

↗
21
6E5412170100
Rod, accel. lever
Loading…

↗
22
6E5412560100
Rod, choke 1
Loading…

↗
23
661412620200
Joint, choke lever
Loading…

↗
24
6N7412710000
Knob, choke
Loading…

↗
25
689412730000
Grommet
Loading…

↗
26
6N7144400100
Silencer assembly, intake
Loading…

↗
27
6E51441K0000
Emblem 1
Loading…

↗
28
904450725800
Hose (l390)
Loading…

↗
29
6K7144830000
Gasket
Loading…

↗
30
9015906M1400
Screw, with washer(6r3)
Loading…

↗
