Yamaha Outboard Parts - Intake - L250AETO (1991) | Flood Marine

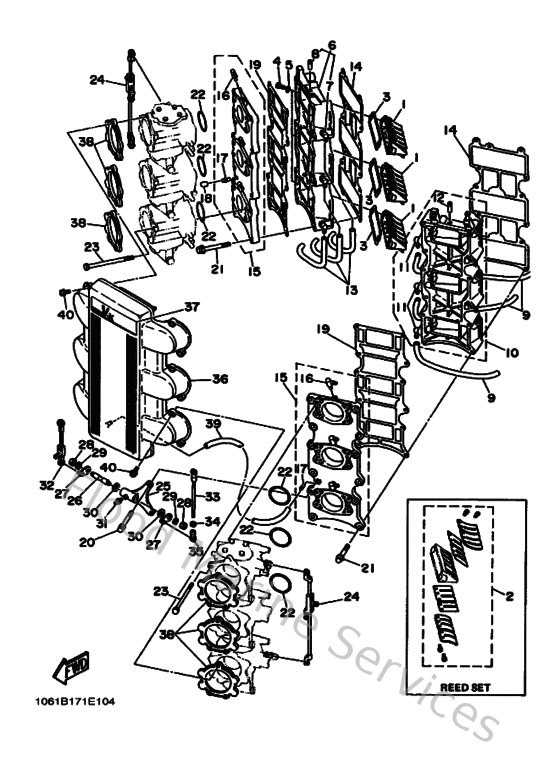

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
61A136100000
Reed valve assembly
Loading…

↗
2
61AW00040000
Reed Set
Loading…

↗
3
61A136210000
Gasket, valve seat
Loading…

↗
4
978850501600
Screw, pan head(6b0)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
61A136240094
Plate, Reed Valve
Loading…

↗
7
6E5113720000
Nipple, hose
Loading…

↗
8
6EEF43770000
Pipe, joint 2
Loading…

↗
9
9044507M2000
Hose (l770)
Loading…

↗
10
61A136241094
Plate, Reed Valve
Loading…

↗
13
9044507M4500
Hose (l390)
Loading…

↗
14
61A136460000
Gasket, manifold 2
Loading…

↗
15
61A13641001S
Manifold, Intake 1
Loading…

↗
16
61A135520000
Nozzle
Loading…

↗
17
624144850000
Pipe, joint
Loading…

↗
18
647143956000
Cap,over flow pipe
Loading…

↗
19
61A136450000
Gasket, Manifold 1
Loading…

↗
20
975130657000
Bolt, With Washer
Loading…

↗
21
975130656500
Bolt, With Washer
Loading…

↗
22
9321050MA800
O-ring(61a)
Loading…

↗
24
61A412170000
Rod, accel. lever
Loading…

↗
25
61A416630000
Bracket 3
Loading…

↗
26
61A412420000
Rod 2
Loading…

↗
27
61A412800000
Accel. Lever Assembly
Loading…

↗
28
953800660000
Nut(661)
Loading…

↗
29
929900610000
Washer(6a1)
Loading…

↗
30
9020208M4100
Washer, plate(6t4)
Loading…

↗
31
937000600400
Nipple, grease(6a1)
Loading…

↗
32
61A412110100
Link Accel.
Loading…

↗
33
6J8412370000
Joint, link
Loading…

↗
34
953800560000
Nut, hexagon (663)
Loading…

↗
35
6H4412370000
Joint, link
Loading…

↗
39
904450724000
Hose (l390)
Loading…

↗
40
979860632500
Screw, With Washer
Loading…

↗
