Yamaha Outboard Parts - Intake 1 - FL115AET (2001) | Flood Marine

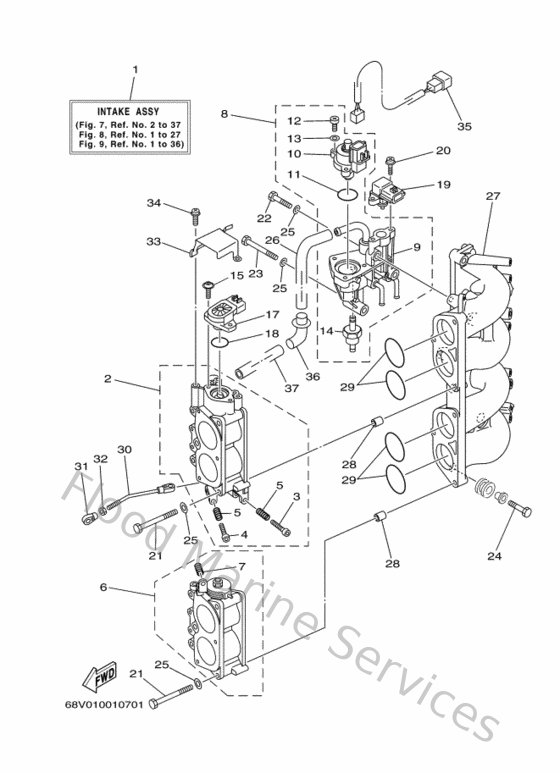

Diagram: Intake 1

Diagram

Parts List

Reference
Description
Price


1
68V142000100
Intake assembly
Loading…

↗
2
68V137510100
Body, Throttle 1
Loading…

↗
3
68V143230000
Screw, air adjusting
Loading…

↗
4
68V143210000
Screw, throttle
Loading…

↗
5
68V143310000
Spring, throttle valve
Loading…

↗
6
68V137520100
Body, throttle 2
Loading…

↗
8
68V131050000
Control valve assembly
Loading…

↗
9
68V149600000
Body assembly
Loading…

↗
10
68V1312A0000
Valve, control
Loading…

↗
11
68V134730000
O-ring
Loading…

↗
12
68V811460000
Screw 2
Loading…

↗
13
68V811620000
Washer Plain
Loading…

↗
14
68V145110000
Filter assembly
Loading…

↗
15
68V811450100
Screw 1
Loading…

↗
17
68V858850000
Throttle sensor assembly
Loading…

↗
18
68V8182L0000
O-ring 1
Loading…

↗
19
68V823800000
Sensor, pressure
Loading…

↗
20
68V811470000
Screw 3
Loading…

↗
21
68V144960000
Bolt
Loading…

↗
22
68V135740000
Bolt 2
Loading…

↗
23
68V153730000
Pipe, breather
Loading…

↗
24
68V147770000
Bolt
Loading…

↗
25
68V144750000
Washer
Loading…

↗
26
68V144191000
Pipe
Loading…

↗
27
68V136410094
Manifold 1
Loading…

↗
28
995301011400
Pin, dowel(3vd)
Loading…

↗
29
9321048MG800
O-ring
Loading…

↗
30
68V412370000
Joint, link
Loading…

↗
31
6H4412370000
Joint, link
Loading…

↗
32
953800570000
Nut (656)
Loading…

↗
33
68V1441L0000
Bracket 1
Loading…

↗
34
68V811450000
Screw 1
Loading…

↗
35
68V8259N0000
Wire Harness assembly 3
Loading…

↗
36
68V144530000
Joint, air cleaner 1
Loading…

↗
37
68V1441J0000
Pipe, silencer
Loading…

↗
