90AETOL (1986)
Intake 2

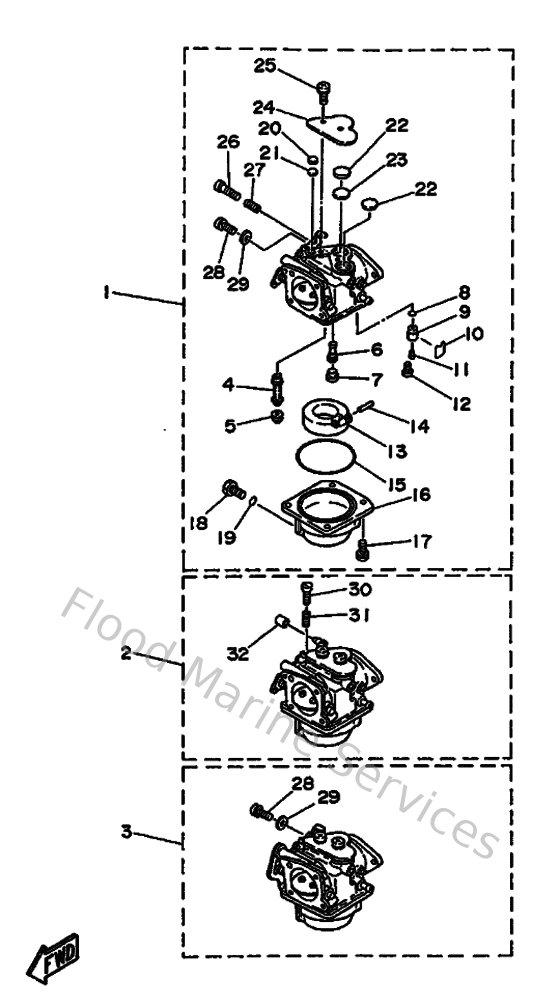

Diagram: Intake 2
Parts List
Reference
Description
Price
1
6H1143011100
Carburetor assembly 1
Loading…
↗
2
6H1143021100
Carburetor assembly 2
Loading…
↗
3
6H1143031100
Carburetor assembly 3
Loading…
↗
4
6H0149470100
Jet, Needle
Loading…
↗
5
6H1149433900
Jet, main (#160)
Loading…
↗
6
6E9149481900
Jet
Loading…
↗
7
679149660000
Rubber cap
Loading…
↗
8
932100422800
O-ring (371)
Loading…
↗
9
692145900000
Needle valve assembly
Loading…
↗
10
633141590000
Clip
Loading…
↗
11
676141860000
Pin, valve
Loading…
↗
12
688145920000
Screw, pan head (713)
Loading…
↗
13
676149850100
Float comp
Loading…
↗
14
688145480000
Pin, arm
Loading…
↗
15
676149840000
Gasket, float chamber
Loading…
↗
16
688149800000
Body, float chamber
Loading…
↗
17
9015904M0000
Screw, pan head(ga5)
Loading…
↗
18
6H3149920000
Screw, drain
Loading…
↗
19
932100423000
O-ring (371)
Loading…
↗
20
663141260000
Packing
Loading…
↗
21
663145270000
Plate
Loading…
↗
26
692149230000
Screw, adjusting
Loading…
↗
27
679145550000
Spring
Loading…
↗
28
663145920000
Screw
Loading…
↗
29
902010565200
Washer, plate(65j)
Loading…
↗
30
663145230000
Screw, stop
Loading…
↗
31
905011032600
Spring coil(663)(carb)
Loading…
↗
32
676145780000
Collar (Lower)
Loading…
↗
