15DEH (1994)
Kits De Reparation 1

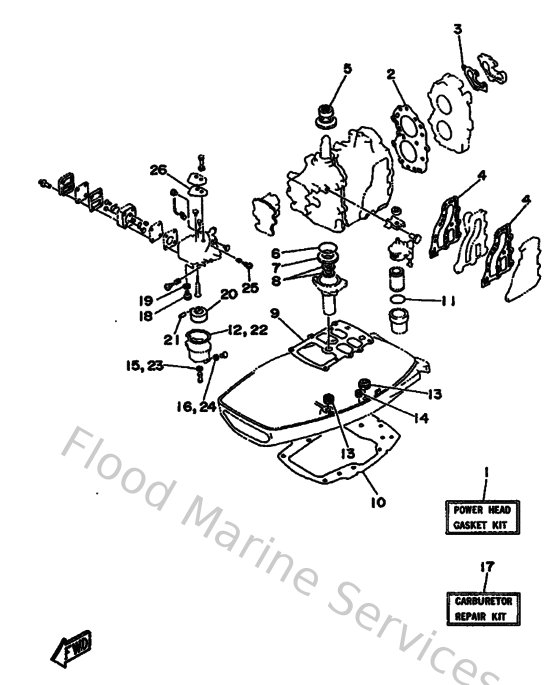

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
682W00010600
Power head gasket kit
Loading…
↗
2
6E711181A000
Gasket, cylinder head 1
Loading…
↗
3
68212414A100
Gasket, cover
Loading…
↗
4
68241112A100
Gasket, exhaust inner cover
Loading…
↗
5
9311023M0000
Oil seal (682)
Loading…
↗
6
932105367900
O-ring(50m)
Loading…
↗
7
9310120M2900
Oil seal(6j1)
Loading…
↗
8
9310113M1100
Oil seal (682)
Loading…
↗
9
68211351A000
Gasket, cylinder
Loading…
↗
10
68245113A100
Gasket, upper casing
Loading…
↗
11
932103273800
O-ring(1wg)
Loading…
↗
12
677143840100
Gasket, float chamber
Loading…
↗
13
682443670000
Rubber water seal 3
Loading…
↗
14
682443660000
Water seal 2
Loading…
↗
15
1J2143980000
Packing
Loading…
↗
16
655143980000
Gasket
Loading…
↗
17
6E8W00930000
Carburetor Repair Kit
Loading…
↗
18
6E8143901200
Needle valve assembly
Loading…
↗
19
367141950000
Washer, valve seat
Loading…
↗
20
6E7143850000
Float
Loading…
↗
21
647143861000
Pin, float
Loading…
↗
25
985030401400
Screw, pan head(ga5)
Loading…
↗
26
677142270100
Gasket
Loading…
↗
