40QMH (1990)
Kits De Reparation 1

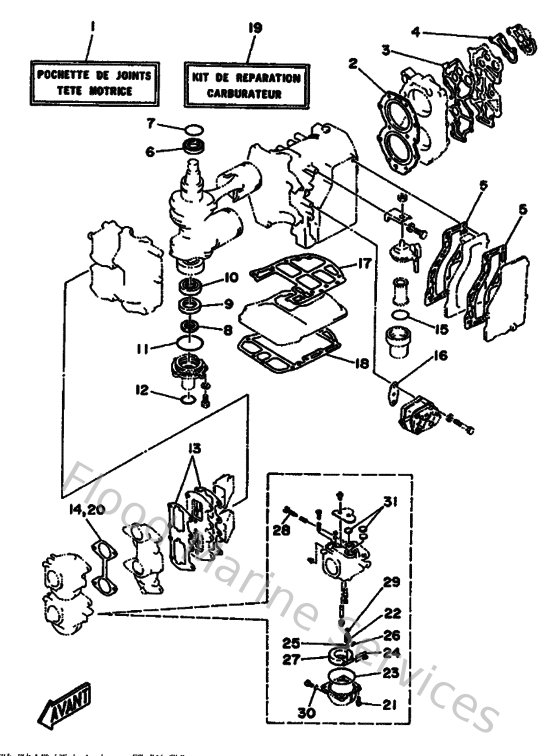

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
2
676111810300
Gasket, cylinder head 1
Loading…
↗
3
6E9111930000
Gasket, head cover 1
Loading…
↗
4
6E912414A100
Gasket, cover
Loading…
↗
5
676411120000
Gasket, exhaust inner cover
Loading…
↗
6
9310232M0700
Oil seal (697)
Loading…
↗
7
932104215900
O-ring (647)
Loading…
↗
8
9310116M3600
Oil seal(6a8)
Loading…
↗
9
9310128M1900
Oil Seal
Loading…
↗
10
9310228M0800
Oil Seal
Loading…
↗
11
932106226900
Ring, o(663)
Loading…
↗
12
9321022M0200
O-ring (676)
Loading…
↗
13
67613646A000
Gasket,intake manifold 2
Loading…
↗
14
6E9141980000
Gasket
Loading…
↗
15
9321037M2500
O-ring (655)
Loading…
↗
16
65024431A000
Gasket,fuel pump
Loading…
↗
17
676451130100
Gasket, upper casing
Loading…
↗
18
676451140300
Gasket, upper casing
Loading…
↗
19
6E9W00930200
Carburetor repair kit
Loading…
↗
22
6H3145900100
Needle valve assembly
Loading…
↗
23
676149840000
Gasket, float chamber
Loading…
↗
24
688145480000
Pin, arm
Loading…
↗
25
676141860000
Pin, valve
Loading…
↗
26
633141590000
Clip
Loading…
↗
27
676149850100
Float comp
Loading…
↗
28
692149230000
Screw, adjusting
Loading…
↗
29
932100422800
O-ring (371)
Loading…
↗
30
932100423000
O-ring (371)
Loading…
↗
