40QMH (1996)
Kits De Reparation 1

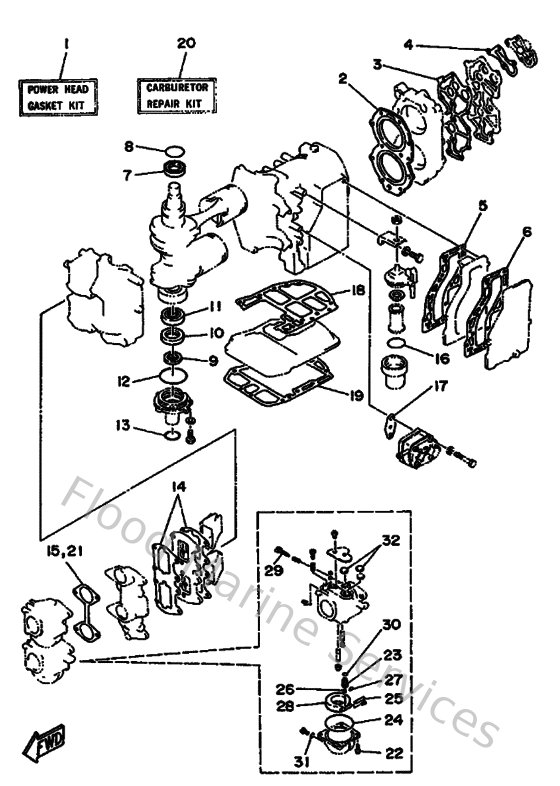

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
6R6W00010200
Power Head Gasket Kit
Loading…
↗
2
67611181A000
Gasket, cylinder head 1
Loading…
↗
3
6E911193A000
Gasket, head cover 1
Loading…
↗
4
6E912414A000
Gasket, cover
Loading…
↗
5
67641112A000
Gasket, exhaust inner cover
Loading…
↗
6
6E941114A000
Joint, Couvercle D'echappement
Loading…
↗
8
932104215900
O-ring (647)
Loading…
↗
9
9310116M3600
Oil seal(6a8)
Loading…
↗
10
9310128M1900
Oil Seal
Loading…
↗
11
9310228M0800
Oil Seal
Loading…
↗
12
932106226900
Ring, o(663)
Loading…
↗
13
9321022M0200
O-ring (676)
Loading…
↗
14
67613646A000
Gasket,intake manifold 2
Loading…
↗
15
6E914198A000
Gasket
Loading…
↗
16
932103273800
O-ring(1wg)
Loading…
↗
17
65024431A000
Gasket,fuel pump
Loading…
↗
18
6F545113A100
Gasket, upper casing
Loading…
↗
19
67645114A000
Gasket, upper casing
Loading…
↗
20
6E9W00930200
Carburetor repair kit
Loading…
↗
22
979800411400
Screw, pan head(ga5)
Loading…
↗
23
6E9145900000
Needle Valve Assembly
Loading…
↗
24
676149840000
Gasket, float chamber
Loading…
↗
25
688145480000
Pin, arm
Loading…
↗
26
676141860000
Pin, valve
Loading…
↗
27
663141590000
Clip
Loading…
↗
28
676149850100
Float comp
Loading…
↗
29
692149230000
Screw, adjusting
Loading…
↗
30
932100422800
O-ring (371)
Loading…
↗
31
932100423000
O-ring (371)
Loading…
↗
32
688141260000
Packing
Loading…
↗
