55BM (1996)
Kits De Reparation 1

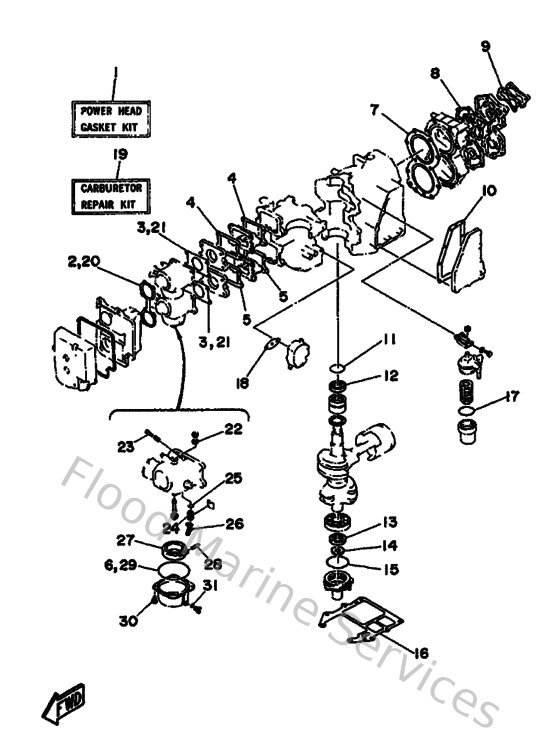

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
697W00010200
Power head gasket kit
Loading…
↗
3
66314198A000
Gasket
Loading…
↗
9
66312414A000
Gasket, thermostat
Loading…
↗
11
932104215900
O-ring (647)
Loading…
↗
12
9310232M0700
Oil seal (697)
Loading…
↗
13
931022813500
Oil seal (28x47x7-663)
Loading…
↗
14
931041804900
Oil seal (18x30x5-663)
Loading…
↗
15
932106226900
Ring, o(663)
Loading…
↗
17
932103273800
O-ring(1wg)
Loading…
↗
19
696W00930200
Carburetor repair kit
Loading…
↗
22
679145570000
Washer (carb)
Loading…
↗
23
663145900100
Valve Seat
Loading…
↗
24
696145900000
Needle valve assembly
Loading…
↗
25
932100722900
O-ring (371)
Loading…
↗
26
676141860000
Pin, valve
Loading…
↗
28
663145480000
Pin, arm
Loading…
↗
29
932106427200
O-ring (663) (carb)
Loading…
↗
30
979800411200
Screw, pan head (686)
Loading…
↗
31
932100423000
O-ring (371)
Loading…
↗
