250AETOXLX (1994)
Kits De Reparation 2

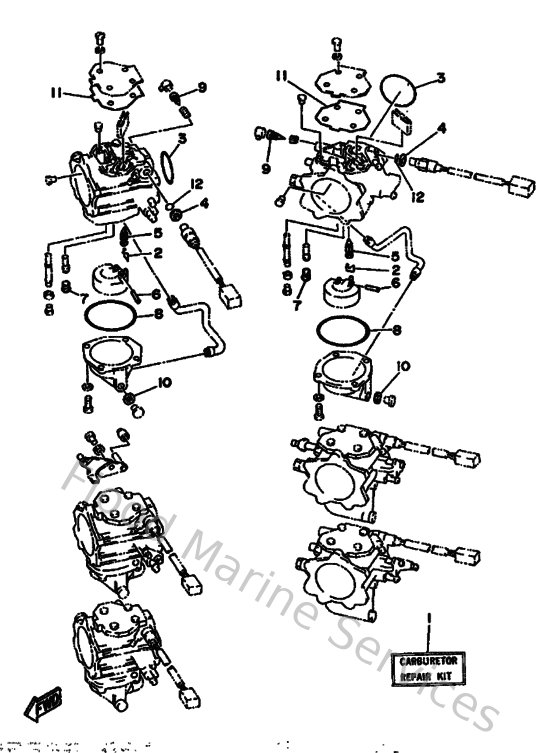

Diagram: Kits De Reparation 2
Parts List
Reference
Description
Price
1
61AW00930100
Carburetor repair kit
Loading…
↗
2
6E5141590000
Clip
Loading…
↗
3
9321050MA800
O-ring(61a)
Loading…
↗
4
61A141980000
Gasket
Loading…
↗
5
6E5145460000
Valve, needle
Loading…
↗
6
61A143860000
Pin, Float
Loading…
↗
7
61A143940000
Valve Drain
Loading…
↗
8
61A143840000
Gasket, float chamber
Loading…
↗
9
6E5143230300
Screw, air adjusting
Loading…
↗
10
61A149950000
Gasket
Loading…
↗
11
61A149590000
Gasket
Loading…
↗
12
61A145610000
O-ring
Loading…
↗
