9.9DMH (1995)
Kits De Reparation 2

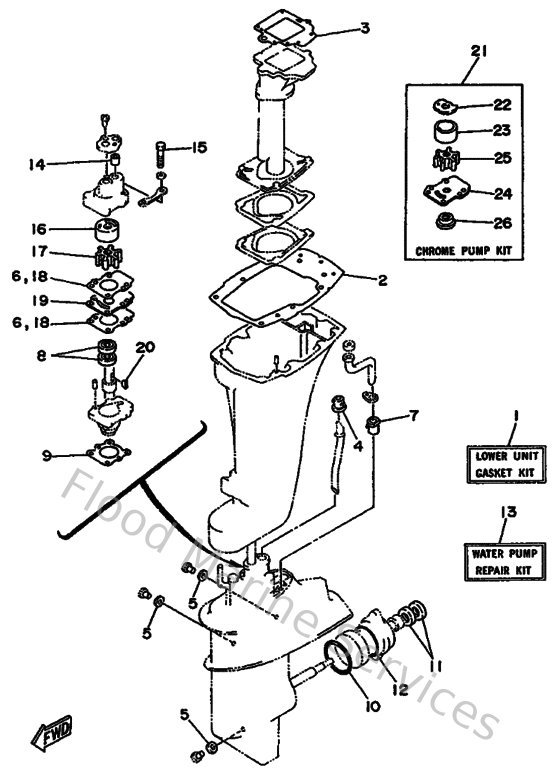

Diagram: Kits De Reparation 2
Parts List
Reference
Description
Price
2
68245113A100
Gasket, upper casing
Loading…
↗
3
68241133A000
Gasket,exhaust manifold 1
Loading…
↗
4
626443650100
Damper, water seal 1
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
68244315A000
Gasket,water pump 1
Loading…
↗
7
6E7443660000
Damper, water seal 2
Loading…
↗
8
931012004800
Oil seal (20x30x6-648)
Loading…
↗
9
68345315A000
Packing,lower casing
Loading…
↗
10
9321057M0900
O-ring (683)
Loading…
↗
11
931011705400
Oil seal (17x30x6-650)
Loading…
↗
12
9321056M8000
O-ring(6j8)
Loading…
↗
13
682W0078A100
Water pump repair kit
Loading…
↗
14
682443650000
Damper, water seal 1
Loading…
↗
15
970950604000
Bolt (682)
Loading…
↗
16
682443220000
Insert, cartridge
Loading…
↗
17
682443520100
Impeller
Loading…
↗
19
682443230000
Outer plate, cartridge
Loading…
↗
20
902800302400
Key, woodruff(662)
Loading…
↗
22
682443214000
Inner Plate Cartridge(Chrome)
Loading…
↗
23
682443224000
Insert, cartridge(chrome)
Loading…
↗
24
682443234000
Outer plate, cartridge(chrome)
Loading…
↗
26
682453440000
Cover, oil seal
Loading…
↗
