E8DMH (1997)
Kits De Reparation 2

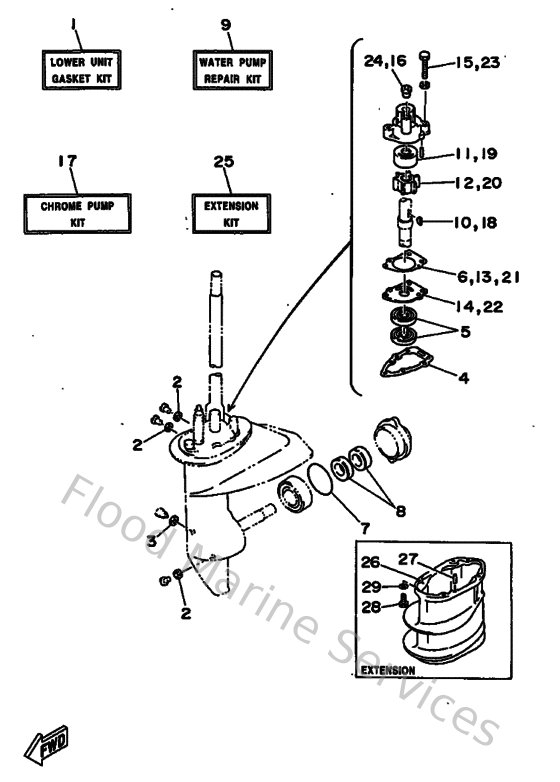

Diagram: Kits De Reparation 2
Parts List
Reference
Description
Price
1
677W0001C000
Gasket kit, lower unit
Loading…
↗
2
904300802000
Gasket
Loading…
↗
3
9043006M0300
Gasket (6f5)
Loading…
↗
4
67745315A000
Packing, lower casing
Loading…
↗
5
931011805000
Oil seal (18x28x6-647)
Loading…
↗
6
65544315A100
Gasket, water pump
Loading…
↗
7
932105867700
O-ring(47x)
Loading…
↗
8
931011507400
Oil seal (655)
Loading…
↗
9
655W0078B000
Water pump repair kit
Loading…
↗
10
902800302400
Key, woodruff(662)
Loading…
↗
11
650443220100
Insert, cartridge
Loading…
↗
12
662443520100
Impeller
Loading…
↗
13
655443150000
Gasket, water pump
Loading…
↗
14
655443230100
Outer plate, cartridge
Loading…
↗
15
970950604000
Bolt (682)
Loading…
↗
16
647443660000
Damper, water seal 2
Loading…
↗
17
655W0078CA00
Chromate Pomp Kit
Loading…
↗
19
655443224100
Insert, cartridge
Loading…
↗
22
655443234100
Outer plate, cartridge
Loading…
↗
25
677W0072004D
Extension Kit
Loading…
↗
26
64745211104D
Extension
Loading…
↗
27
936040806200
Pin,dowel (626)
Loading…
↗
28
970950602000
Bolt(7u8)
Loading…
↗
29
929900660000
Washer, plain (646)
Loading…
↗
