F25AEH (1998)
LOWER

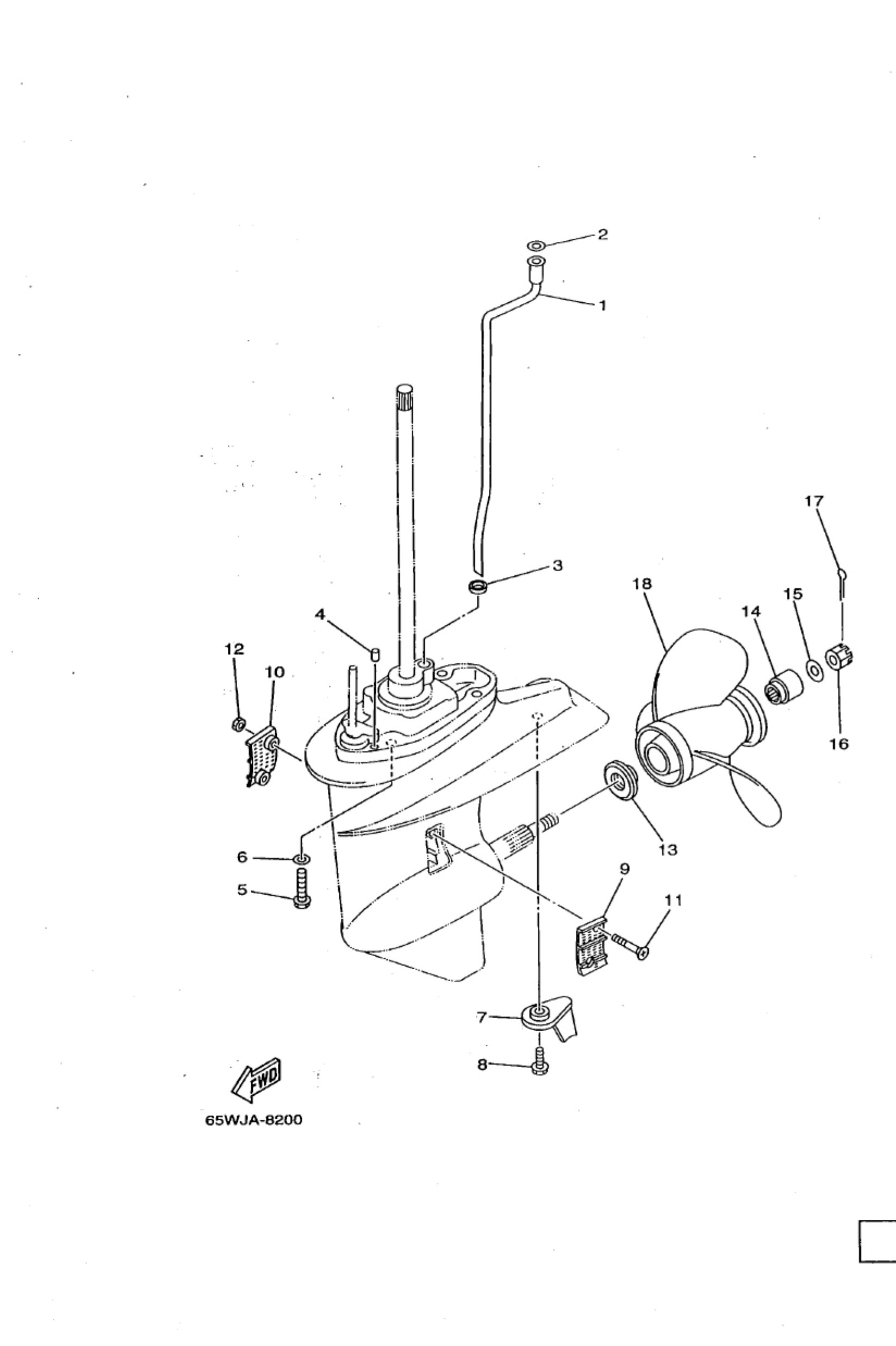

Diagram: LOWER
Parts List
Reference
Description
Price
1
65W4436110
[IRIE] URL
Tube, water
Loading…
↗
1
65W4436100
URS
Tube, water
Loading…
↗
2
9020212060
1] 1
Washer, plate(663)
Loading…
↗
3
9043012072
if 1] 1
Gasket
Loading…
↗
4
9360612019
2) 2| 2
Pin, dowel (614)
Loading…
↗
5
9010510M12
4|4]a
Bolt (689)
Loading…
↗
6
9299510600
a al a
Washer, plate
Loading…
↗
7
61N4537100
[IRIE
Tab-trim
Loading…
↗
8
9011906M48
IRIE
Bolt, with washer(61n)
Loading…
↗
9
6L24521400
Cover, water inlet
Loading…
↗
11
9878005030
2[ 2| 2
Ybs53-530 screw,flat head
Loading…
↗
12
9018505002
2| 2| 2
Nut nylon (sus)(ex4)
Loading…
↗
13
6L24598701
11] 1
Spacer
Loading…
↗
14
6894599700
[RIE
Spacer
Loading…
↗
16
9017114013
[IRIE
Nut(664)
Loading…
↗
17
9149030022
iff
Pin, cotter
Loading…
↗
17
65WJA8200
Helice (3X9-7/6"X12"-F)
Loading…
↗
17
664450720098
1] 1 UR STAINLESS
Propeller (3X9-1/8"X12"-F)
Loading…
↗
