3AMH (2006)
LOWER CASING & DRIVE

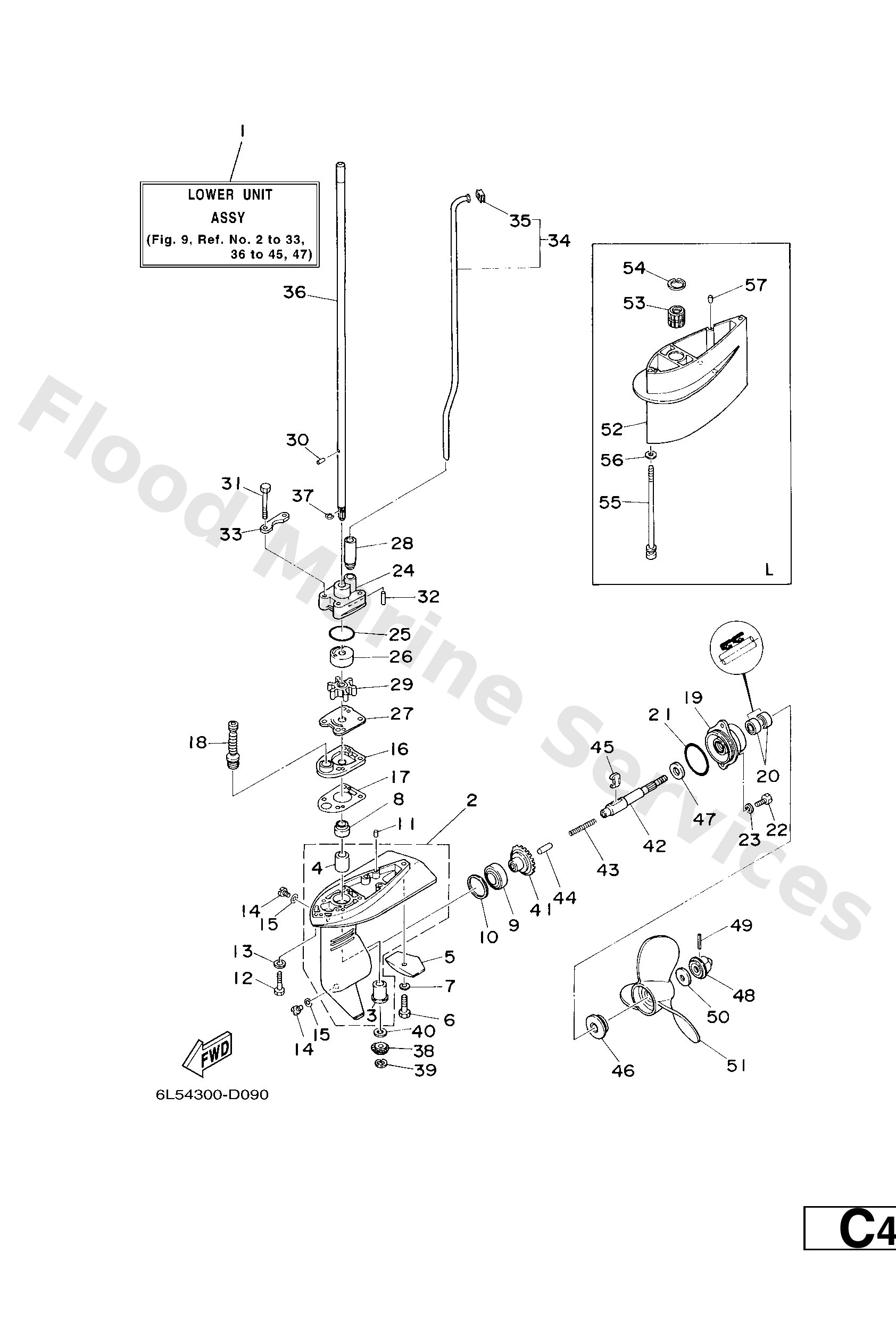

Diagram: LOWER CASING & DRIVE
Parts List
Reference
Description
Price
1
6L545300114D
L (22.4")
Lower Unit assembly
Loading…
↗
1
6L545300014D
S (17.4")
Lower unit assembly
Loading…
↗
2
6L545311004D
Casing, lower
Loading…
↗
3
6L54531709
Bushing, d/shaft 2 90381-09m08
Loading…
↗
4
6L54531609
Bushing, d/shaft 1 90380-09m23
Loading…
↗
5
6L54525103
Anode
Loading…
↗
6
9589506030
S (17.4")
Bolt, flange deep recess
Loading…
↗
6
9010106M18
L (22.4")
Bolt(6l5)
Loading…
↗
7
9299006300
Washer, tooth
Loading…
↗
8
9310309M41
Oil seal
Loading…
↗
9
93316003U0
Bearing, cylindrical(6l5)
Loading…
↗
10
6L54556700
UN
Shim
Loading…
↗
57
9360412M07
L (22.4")
Pin, dowel (688)
Loading…
↗
12
9709506030
S (17.4")
Bolt(jf7)
Loading…
↗
13
9299506600
S (17.4")
Washer, plain (646)
Loading…
↗
14
9034008002
Plug, straight screw
Loading…
↗
15
9043008020
Gasket
Loading…
↗
16
6L545321005B
Plate
Loading…
↗
17
6L545315A0
Packing,l0wer casing
Loading…
↗
18
6L24414700
Boot, shift rod
Loading…
↗
19
6L545361004D
Cap, lower casing
Loading…
↗
20
9310113M12
Oil seal
Loading…
↗
21
9321048214
O-ring
Loading…
↗
22
9709506016
Bolt, hexagon deep recess
Loading…
↗
24
6L54431100
Housing, water pump
Loading…
↗
25
9321033M85
O-ring(6l5)
Loading…
↗
26
6L54432200
Insert, cartridge
Loading…
↗
27
6L54432300
Outer plate, cartridge
Loading…
↗
28
6E04436600
Damper, water seal 2
Loading…
↗
29
6L54435200
Impeller
Loading…
↗
30
9360407M13
Pin, dowel(6l5)
Loading…
↗
31
9709506040
Bolt (682)
Loading…
↗
32
9360418080
Pin. dowel. (647)
Loading…
↗
33
6L54432800
Plate
Loading…
↗
34
6L54436011
L (22.4")
Water Tube assembly
Loading…
↗
34
6L54436001
S (17.4")
Water tube assembly
Loading…
↗
35
6464436500
Damper, water seal 1
Loading…
↗
36
6L54551100
S (17.4")
Shaft, drive
Loading…
↗
36
6L54551110
L (22.4")
Shaft, Drive
Loading…
↗
37
9046707M12
Clip(6l5)
Loading…
↗
38
6L54555100
Pinion
Loading…
↗
39
9900106600
Circlip(53l)
Loading…
↗
40
6L54553300
UR
Shim
Loading…
↗
40
6L54553310
UR
Shim (t:2.1mm)
Loading…
↗
40
6L54553320
UR
Shim (t:2.2mm)
Loading…
↗
40
6L54553330
UR
Shim (t:2.3mm)
Loading…
↗
41
6L54556000
Gear
Loading…
↗
42
6L54561100
Shaft, propeller
Loading…
↗
43
9050110064
Spring, compression 6164563600
Loading…
↗
44
6L54563500
Plunger, shift
Loading…
↗
45
6L54563100
Clutch, dog
Loading…
↗
46
6L54598701
Spacer 1
Loading…
↗
47
9020113198
Washer 6474556600
Loading…
↗
48
6L54561600
Nut, propeller
Loading…
↗
49
9149025030
Pin, cotter(6l5)
Loading…
↗
50
9020108M54
Washer, plate (6e5)
Loading…
↗
51
6L54594300EL
UR
Propeller (3x7-1/4 x6 -bs)
Loading…
↗
51
6L54594500EL
UR
Propeller (3x7-1/4"x7-1/4"-bs)
Loading…
↗
51
6L54594700EL
UR
Propeller (3x7-1/4"x8-1/4"-bs)
Loading…
↗
51
6L54594900EL
UR
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
51
6L54595200EL
UR
Propeller (3x7-1/4"x5-1/2"-bs)
Loading…
↗
52
6L545211004D
L (22.4")
Extension
Loading…
↗
53
6L54531800
L (22.4")
Bushing, drive shaft
Loading…
↗
54
9342022M03
L (22.4")
Cir clip (6e0)
Loading…
↗
56
9299006600
L (22.4")
Washer, plain (646)
Loading…
↗
