5CMH (2006)
LOWER CASING & DRIVE

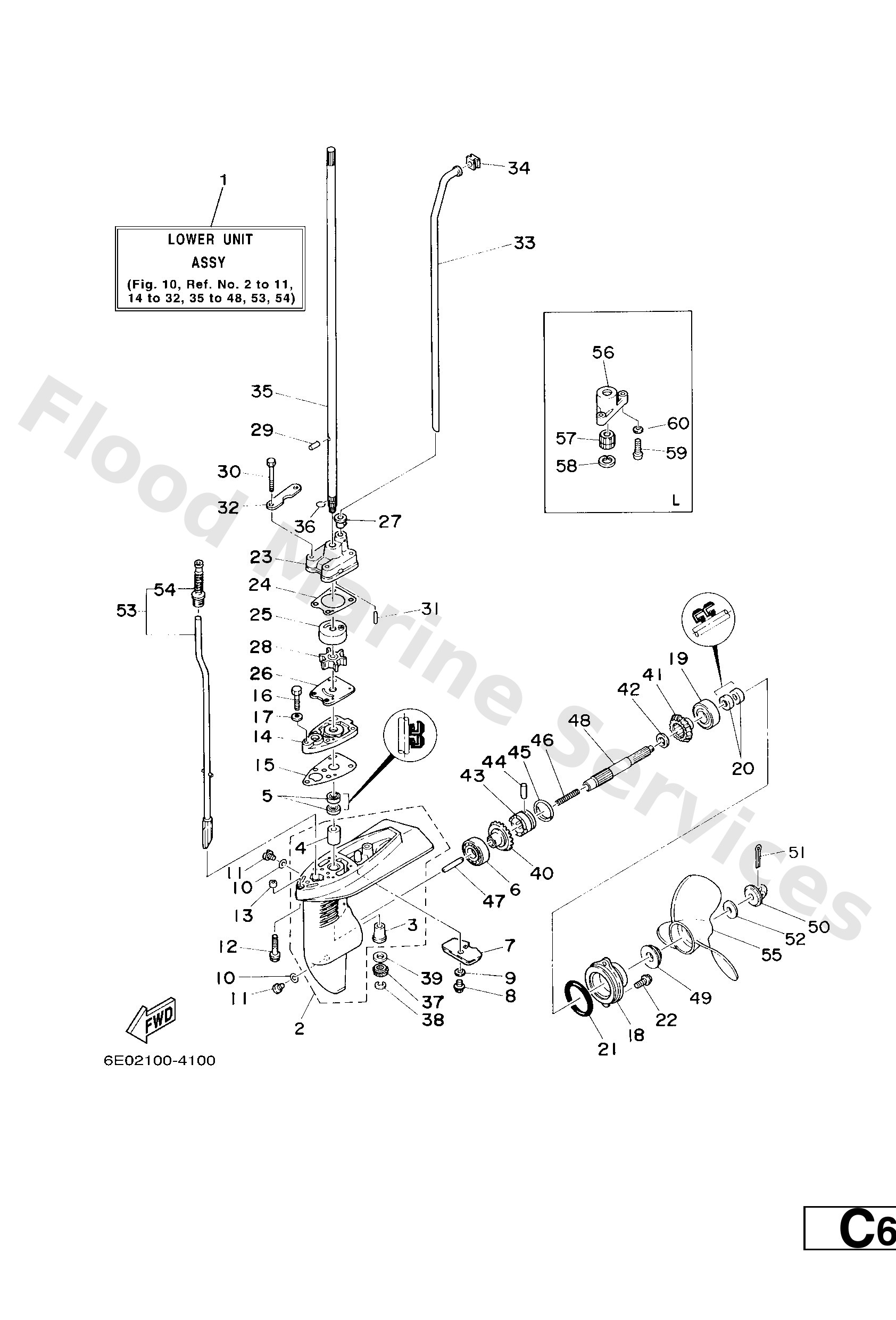

Diagram: LOWER CASING & DRIVE
Parts List
Reference
Description
Price
1
6E045300134D
L (22.5")
Lower unit assembly
Loading…
↗
1
6E045300034D
S (17.5")
Lower unit assembly
Loading…
↗
2
6E045311024D
Casing, lower
Loading…
↗
3
6E04531709
Bushing
Loading…
↗
4
6E04531609
Bushing
Loading…
↗
5
9310110M14
Oil seal
Loading…
↗
6
93306004U0
Bearing (7k2)
Loading…
↗
7
6L54525103
Anode
Loading…
↗
8
9589506012
Bolt, flange deep recess
Loading…
↗
9
9299006300
Washer, tooth
Loading…
↗
10
9043008020
Gasket
Loading…
↗
11
9034008002
Plug, straight screw
Loading…
↗
12
9011906M40
Bolt, with washer
Loading…
↗
13
9038706M14
Collar(6e0)
Loading…
↗
14
6E045321015B
Plate
Loading…
↗
15
6E045315A0
Packing,lower casing
Loading…
↗
16
9709506025
Bolt
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
6E045361014D
Cap, lower casing
Loading…
↗
20
9310113M12
Oil seal
Loading…
↗
21
9321048214
O-ring
Loading…
↗
22
9589506016
Bolt, flange deep recess
Loading…
↗
23
6E04431100
Housing, water pump
Loading…
↗
24
6E044315A0
Gasket,water pump 1
Loading…
↗
25
6E04432202
Insert, cartridge
Loading…
↗
26
6E04432300
Outer plate, cartridge
Loading…
↗
27
6E04436600
Damper, water seal 2
Loading…
↗
28
6E04435200
Impeller
Loading…
↗
29
9360409066
Pin, dowel
Loading…
↗
30
9709506045
Bolt, hexagon
Loading…
↗
31
9360418080
Pin. dowel. (647)
Loading…
↗
32
6E04432800
Plate
Loading…
↗
33
6E04436100
S (17.5")
Tube, water
Loading…
↗
33
6E04436110
L (22.5")
Tube, water
Loading…
↗
34
6464436500
Damper, water seal 1
Loading…
↗
35
6E04551101
S (17.5")
Shaft, drive
Loading…
↗
35
6E04551111
L (22.5")
Shaft, drive
Loading…
↗
36
9046708M01
Clip (6e0)
Loading…
↗
37
6E04555100
Pinion (13t)
Loading…
↗
38
9900106600
Circlip(53l)
Loading…
↗
39
9020111M49
Washer, plate (6e0)
Loading…
↗
40
6E04556000
Gear 1 assembly (27t)
Loading…
↗
41
6E04557000
Gear 2 assembly (27t)
Loading…
↗
42
9020113M50
Washer, plate (6e0)
Loading…
↗
43
6E04563100
Clutch, dog
Loading…
↗
44
9025005046
Pin,straight
Loading…
↗
45
6544563300
Ring, cross pin
Loading…
↗
46
9050110064
Spring, compression 6164563600
Loading…
↗
47
6544563500
Plunger, shift
Loading…
↗
48
6E04561101
Shaft, propeller
Loading…
↗
49
6L54598701
Spacer 1
Loading…
↗
50
6L54561600
Nut, propeller
Loading…
↗
51
9149025030
Pin, cotter(6l5)
Loading…
↗
52
9020108M54
Washer, plate (6e5)
Loading…
↗
53
6E04415000
S (17.5")
Shift cam assembly
Loading…
↗
53
6E04415010
L (22.5")
Shift cam ass'y
Loading…
↗
54
6G14414700
Boot, shift rod
Loading…
↗
55
6E04594101EL
UR
Propeller (3x7-1/2 x8 -ba)
Loading…
↗
55
6E04594301EL
UR
Propeller (3x7-1/2"x7"-ba)
Loading…
↗
55
6E04594900EL
UR
Propeller (3x7-1/4 x6-1/2 -ba)
Loading…
↗
56
6E045331005B
L (22.5")
Housing, bearing
Loading…
↗
57
6E04531801
L (22.5")
Bushing, drive shaft 3
Loading…
↗
58
9342022M03
L (22.5")
Cir clip (6e0)
Loading…
↗
59
9788005025
L (22.5")
Screw, panhead (a93)
Loading…
↗
60
9299005600
L (22.5")
Washer, plain (646)
Loading…
↗
